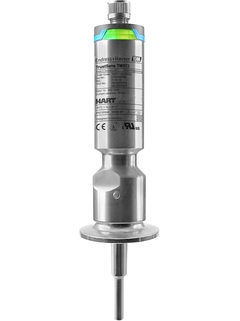

iTHERM TrustSens TM372 Hygienic compact thermometer, US Style

iTHERM TrustSens TM372
Compact thermometer

Imperial RTD thermometer with self-calibration technology for hygienic applications

TM372

Primerjava

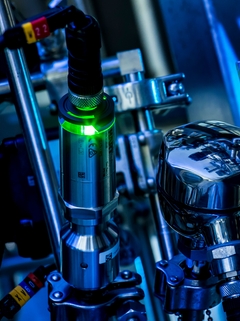

iTHERM TrustSens TM372 Hygienic compact thermometer with self-calibrating function, US Style — iTHERM TrustSens - the thermometer for the food industry

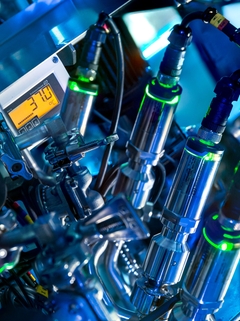

iTHERM TrustSens TM372 self-calibrating hygienic compact thermometer with QuickNeck, US Style — iTHERM TrustSens with patented QuickNeck for all hygienic and aseptic applications

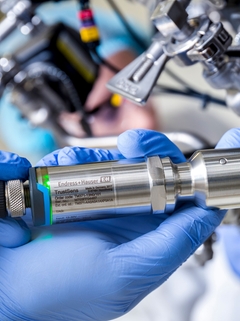

iTHERM TrustSens TM372 self-calibrating hygienic compact thermometer for higher product safety — iTHERM TrustSens - The award-winning thermometer for all hygienic and aseptic applications

Lastnosti na dlani

Response time

t50 = 2,5 s
t90 =9,5s
Max. process pressure (static)

at 20 °C: 40 bar (580 psi)
Operating temperature range

PT 100:
-40 °C …160 °C (-40 °F …320 °F),
optional up to 190 °C (374 °F)
Max. immersion length on request

up to 28'' (711 mm)
others on request

Vse specifikacije

Področje uporabe

The award-winning smart temperature probe with integrated HART® transmitter and Heartbeat Technology features the world’s first RTD sensor unit capable of fully automated in-situ self-calibration. It effectively eliminates the risk of undetected non-conformities, reduces production downtime and increases product safety and process efficiency in applications of the food & beverage and life sciences industries. The device is fully compliant to FDA 21 CFR Part 11 regulations and GMP rules.

Specially designed for use in hygienic and aseptic applications in the food & beverage and life sciences industries
Measuring range: –40 to 190 °C (–40 to 374 °F)
Pressure range up to 50 bar (725 psi)
Protection class: IP65/67 or IP69
Communication: Analog output 4 to 20 mA, HART^® protocol

Prednosti

Risk and cost reduction thanks to self-calibration and Heartbeat Technology
No production downtime due to an automated and fully traceable inline self-calibration
Automatized documentation, memory for 350 calibration points.

Printable calibration certificate - audit proof.
Automated 4 to 20 mA loop check for saving time and increasing safety in your process. See how iTHERM TrustSens can perform a fully automated loop check in five easy steps. The video shows the device set up and benefits for your process.
Elimination of non-conformities or undetected failures
International certifications and approvals:
– EHEDG, ASME BPE, FDA, 3-A, 1935/2004, 2023/2006, 10/2011, CE CRN, CSA General Purpose, Explosion protection, e.g. ATEX/IECEx
Highest accuracy of measuring point through sensor-transmitter matching

Videoposnetki

Smart instrumentation through Heartbeat Technology

You want to increase plant performance and reduce costs? Our smart instrumentation portfolio with Heartbeat Technology offers in-depth device insight for more cost-efficiency and operational safety.
- Več informacij
iTHERM TrustSens self-calibrating sanitary RTD sensor

A unique temperature sensor technology based on an integrated fixed-point reference element that enables reliable and accurate recalibration of the primary Pt100 RTD sensor.
