Max. process pressure (static)
500 bar (7252 psi)
Depending on Configuration -
Maximum standard immersion length
1500 mm
Področje uporabe

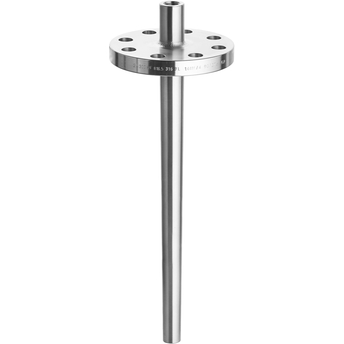

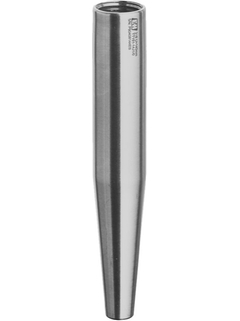

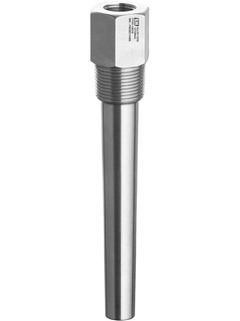

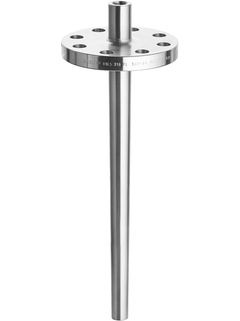

The TT151 thermowell is designed as per DIN 43772, ASME B40.9, NAMUR NE 170 norms or as individual configuration. The robust protection tube ensures safe and accurate measurements in process lines or vessels, shielding temperature sensors from harsh environments. It is drilled and machined from solid bar stock with root diameters from 9 to 50 mm. Tips are available in straight, tapered or stepped form. Process connections include a selection of standard flanges, threads or weld-in versions.
Protects the temperature sensor against physical and chemical stress
High robustness for challenging process conditions
Pressure range: up to 500 bar (7252 psi)
For use in pipes, vessels or tanks
Easier maintenance and recalibration of the measuring point (sensor can be replaced without interrupting the process)
Prednosti
-
TT151 is an industry standard thermowell manufactured from round barstock
-

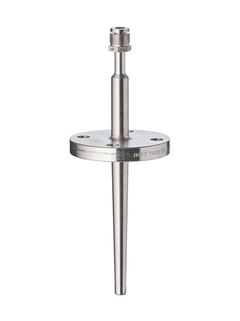

Modular configuration according to DIN 43772, ASME B40.9, NAMUR NE 170 or more flexible as universal version
-
Extension, immersion length and total length can be chosen according to process requirements
-
Wide range of dimensions, materials and process connections available
-

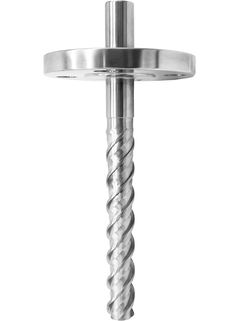

iTHERM TwistWell in helical design - reducing vortex induced vibrations in high-velocity applications
