Raman spectroscopy - advanced optical analysis technology
Boost plant safety, ensure product quality, and optimize operations. Raman spectroscopy measures the composition and molecular structure of your samples from lab-to-process in real time.
Lastnosti na dlani
-
Laser wavelength

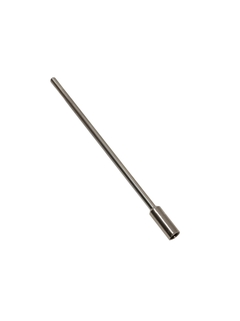

With immersion optic:
532 nm, 785 nm, 1000 nm
With bIO-Optic or Raman optic system for single use:
785 nm, 1000 nm
With bio multi optic and bio sleeve or Raman flow assembly:
785 nm -
Body and window materials
Rxn-10 probe body: 6061 aluminum, 316L stainless steel, and 303 stainless steel
Področje uporabe

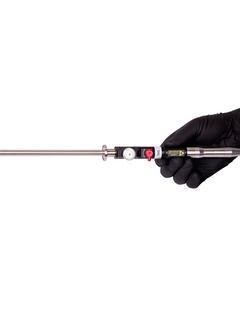

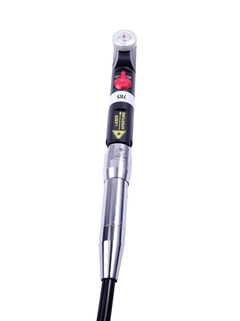

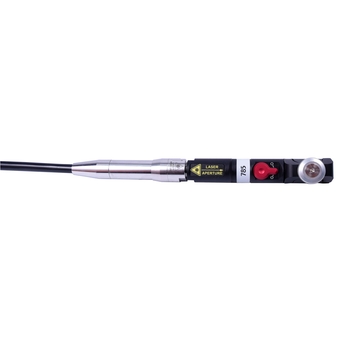

Designed for product and process development, the Rxn-10 probe is the workhorse of the Raman probe portfolio. It is trusted to deliver high performance Raman measurements across a wide spectral range. It is also compact, lightweight, and flexible, offering multi-purpose convenience for solids and liquids analysis in the laboratory environment. The Rxn-10 probe accepts a variety of interchangeable optics, making it a highly versatile and easily adaptable instrument in your laboratory toolbox.
Chemical: reaction monitoring, blending, catalysis, hydrocarbon speciation, process unit optimization
Polymer: polymerization reaction monitoring, extrusion monitoring, polymer blending
Pharmaceutical: API reaction monitoring, crystallization
Biopharmaceutical: monitoring, optimization, and control of cell culture, fermentation, and downstream applications
Food & Beverage: zonal heterogeneity mapping of meats and fish
Prednosti
Multipurpose use for both solids and liquids measurement
Lightweight and compact
Integrated laser safety interlock, including “laser on” indication and probe shutter
Flexible output compatible with a range of sampling options

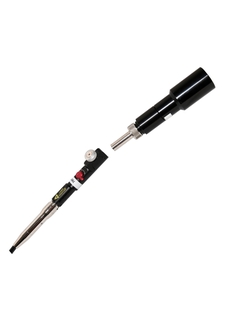

Easy switching of non-contact, immersion, and bioprocessing optics to suit a variety of applications
Wide spectral range, including access to the critical low-wavenumber region
Segment Extended
-
Vrhunski produkti
- Visoko funkcionalni in praktični
Tehnična odličnost
Preprostost
-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Specialni produkti
- Zasnovani za posebej zahtevne aplikacije
Tehnična odličnost
Preprostost
Spremenljivo
| FLEX izbira | Tehnična odličnost | Preprostost |
|---|---|---|
Segment Fundamental Zadostite svojim osnovnim merilnim potrebam |
Tehnična odličnost
|
Preprostost
|
Segment Lean Obvladajte ključne procese na preprost način |
Tehnična odličnost
|
Preprostost
|
Segment Extended Optimirajte procese z inovativnimi tehnologijami |
Tehnična odličnost
|
Preprostost
|
Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije |
Tehnična odličnost
|
Preprostost
Spremenljivo |
Loading alternative products
Zgodbe o uspehu
Morda vas zanima tudi
Dokumenti 75
-
-
Tehnične informacije (TI)
Accessory optics for the Rxn-10 probe Technical Information
System design and specifications for Rxn-10 probe optics:
Raman immersion optics (KIO1),
non-contact optics (KNCO1), bIO-Optics (KLBIO1),
bio multi optics (KRBMO), bio sleeves (KRBSL),
and Raman optic system for single use (KRSU1)EN SL 31/05/202303/08/2022Jezik:
angleščina
Verzija:
31/05/2023
Velikost datoteke:
467.9 KB
Ime datoteke:
TI01635CEN_0322.pdf
-
-
-
Tehnične informacije (TI)
Rxn-10 Raman spectroscopic probe Technical Information
System design and specifications for the Raman Rxn-10 probe
EN SL 13/11/2024Jezik:
angleščina
Verzija:
13/11/2024
Velikost datoteke:
929.9 KB
Ime datoteke:
TI01629CEN_0424.pdf
-
-
-
Navodila za uporabo (BA)
Accessory optics for the Rxn-10 probe Operating Instructions
Commissioning, operation, and maintenance details
for Rxn-10 probe optics: Raman immersion optics (KIO1),
non-contact optics (KNCO1), bIO-Optics (KLBIO1),
bio multi optics (KRBMO), bio sleeves (KRBSL)
and Raman optic system for single use (KRSU1)EN SL 31/05/202303/08/2022Jezik:
angleščina
Verzija:
31/05/2023
Velikost datoteke:
1.8 MB
Ime datoteke:
BA02171CEN_0322.pdf
-
-
-
Navodila za uporabo (BA)
Rxn-10 Raman spectroscopic probe Operating Instructions
Commissioning, operation, and maintenance details
for the Raman Rxn-10 probeEN SL 02/12/2024Jezik:
angleščina
Verzija:
02/12/2024
Velikost datoteke:
1.2 MB
Ime datoteke:
BA02160CEN_0424.pdf
-
-
-
Kratka navodila (KA)
Rxn-10 Raman spectroscopic probe Brief Operating Instructions
Quick start guide for the Raman Rxn-10 probe
Jezik:
angleščina
Verzija:
02/12/2024
Velikost datoteke:
1.6 MB
Ime datoteke:
KA01546CEN_0424.pdf
-
-
-
Kratka navodila (KA)
Accessory optics for the Rxn-10 probe Brief Operating Instructions
Quickstart guide for Rxn-10 probe optics:
Raman immersion optics (KIO1),
non-contact optics (KNCO1), bIO-Optics (KLBIO1),
bio multi optics (KRBMO), bio sleeves (KRBSL),
and Raman optic system for single use (KRSU1)EN SL 31/05/202303/08/2022Jezik:
angleščina
Verzija:
31/05/2023
Velikost datoteke:
1 MB
Ime datoteke:
KA01551CEN_0322.pdf
-
-
-
