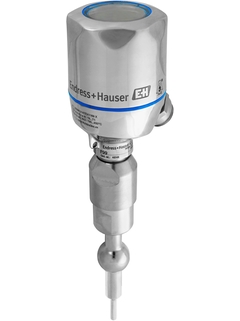

Sanitary digital thermometer iTHERM TM411

iTHERM ModuLine TM411
Hygienic modular thermometer

Metric RTD thermometer with or without thermowell for hygienic applications

TM411

Primerjava

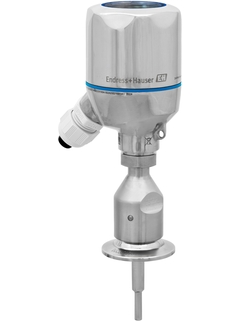

Sanitary thermometer with clamp process connection — Sanitary thermometer iTHERM TM411 with clamp and iTHERM QuickNeck

The high accuracy iTHERM iTM411 temperature sensor with digital display — Modular iTHERM TM411 temperature assembly in hygienic design with international approvals for use in hazardous areas

iTHERM TM411, a hygienic thermometer with QuickSens and StrongSens technology — The iTHERM TM411 sanitary modular thermometer with digital display delivers highly accurate, reliable and fast temperature measurements in sterile applications

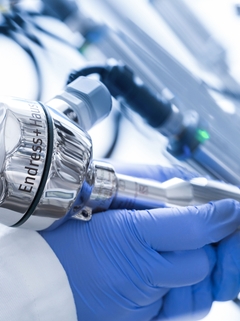

An iTHERM TM411 sanitary thermometer being installed in a bioreactor — Sanitary thermometer iTHERM TM411 in a bioreactor

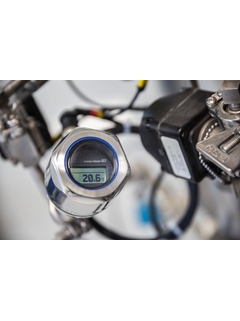

Sanitary thermometer iTHERM TM411 with digital display — iTHERM TM411 sanitary thermometers are available with a digital display for on-site process temperature monitoring

Sanitary thermometer iTHERM TM411 with clamp and iTHERM QuickNeck

Lastnosti na dlani

Accuracy

class A acc. to IEC 60751
class AA acc. to IEC 60751
Response time

depending on configuration
iTHERM QuickSens: t90 = 1,5 s
iTHERM StrongSens: t90 = 9,5 s
Max. process pressure (static)

at 20 °C: 40 bar (580 psi)
Operating temperature range

PT100:
-200 °C … 600 °C
(-328 °F … 1.112 °F)
iTHERM StrongSens:
-50 °C … 500 °C
(-58 °F … 932 °F)
iTHERM QuickSens:
-50 °C … 200 °C
(-58 °F … 392 °F)

Vse specifikacije

Področje uporabe

The modular sanitary thermometer iTHERM TM411 with digital display delivers highly accurate, reliable and fast temperature measurements in process lines, vessels, tanks, fermenters and more. The high-performance device is designed for the strictly regulated food and life sciences industries. Configure your hygienic instruments from a selection of thin film RTDs with QuickSens or StrongSens technology or 2x Pt100 wire wound temperature sensors, smart transmitters and hygienic process connections.

Designed for use in hygienic and aseptic applications in food, beverage and life sciences
Measuring range: –200 to 600 °C (-28 to 1 112 °F)
Pressure range up to 40 bar (580 psi)
Protection class: up to IP69K
Remote parametrization with secure Bluetooth® temperature transmitters
International approvals: Certified for use in hazardous areas, explosion protection as per ATEX/IECEx, CSA, FM, EAC Ex, JPN Ex, NEPSI; Hygiene standards according to 3-A, EHEDG, ASME BPE, FDA, TSE Certificate of Suitability

Prednosti

Optimum process control: Fast sensor response times with iTHERM QuickSens technology (t90: 1.5 s)
Up to 75% faster and safer recalibrations with iTHERM QuickNeck – tool-free quick-release for instant insert removal
High sensor availability under rough conditions: Vibration resistant RTD technology iTHERM StrongSens (> 60g)
Easy product selection, configuration and maintenance
Increase productivity and product safety in sanitary applications with highly accurate and reliable measurements
Thermowells, hygienic process connections and housings expertly manufactured from high-grade materials treated for low surface roughness

Videoposnetki

Improve sterile, aseptic manufacturing with accurate and reliable process temperature measurement: Our iTHERM TM4xx series of hygienic design modular thermometers

Innovative temperature sensor - iTHERM QuickSens

Innovative temperature measurement - the temperature sensor with unbeatably short response times for high-precision measurements and accurate process control.
- Več informacij
Innovative temperature measurement - iTHERM StrongSens

Innovative temperature measurement - the robust temperature sensor for highly precise measurements and accurate process control. Vibration resistance of up to 60g.
- Več informacij
iTHERM QuickNeck - Taking the right turn

The temperature measuring insert can be removed with a simple twist of the QuickNeck process connection, saving time and effort during maintenance or recalibration.
- iTHERM TM411 with QuickNeck technology
