Product picture temperature transmitter iTEMP TMT72

iTEMP TMT72 temperature transmitter

Name: iTEMP HART TMT72
Brand: Endress+Hauser
Availability: InStock

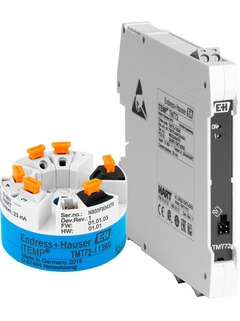

HART® temperature transmitter as head, field or DIN rail device with one universal sensor input suitable for use in hazardous areas

TMT72

Primerjava

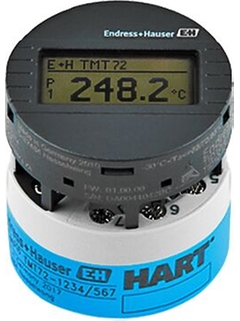

Product picture temperature transmitter iTEMP TMT72 with TID10 — Temperature transmitter with pluggable display TID10

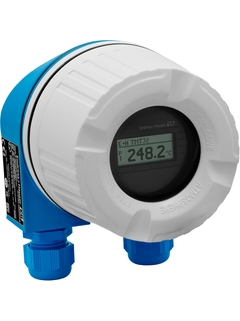

Product picture temperature transmitter iTEMP TMT72 installed in field housing TA30H — Temperature transmitter installed in a explosion protected field housing

Lastnosti na dlani

Accuracy

(Pt100, -50...200 °C) <= 0,1 K
(Pt100, -58...392 °F) <= 0,18 °F

Vse specifikacije

Področje uporabe

Unsurpassed reliability, accuracy and long-term stability in critical processes across all industries. The configurable transmitter transfers converted signals from RTD and thermocouple (TC) temperature probes, as well as resistance and voltage signals using HART^® communication. Diagnostics information according to NAMUR NE 107. Seamless integration into all major control and asset management systems. Integrated Bluetooth^® interface for remote operation via Endress+Hauser SmartBlue App.

Bluetooth^®-enabled temperature transmitter with HART^® communication for the conversion of various input signals into a scalable, analog 4 to 20 mA output signal
Improved process efficiency and increased plant uptime
Universal input for RTD, TC, resistance transmitters (Ω), voltage transmitters (mV)
Installation in terminal head form B (flat face) as per DIN EN 50446
Installation in cabinets with DIN rail housing
Optional installation in field housing even for use in Ex d applications

Prednosti

Safe operation in hazardous areas thanks to international approvals
Reliable operation thanks to sensor and device monitoring
Integrated Bluetooth^® interface for the wireless display of measured values and configuration via E+H SmartBlue (app), optional
Diagnostics information according to NAMUR NE 107
Available with plug-on display TID10
Optimization of the measurement accuracy by sensor-transmitter matching.
