Lastnosti na dlani
-
Accuracy
class A acc. to IEC 60751
-
Response time
t50 = 1 s
t90 = 1.5 s -
Max. process pressure (static)
at 20 °C: 50 bar (725 psi)
-
Operating temperature range
PT 100:
-50 °C ...200 °C
(-58 °F ...392 °F) -
Max. immersion length on request
up to 600,00 mm (23,62'')
Področje uporabe

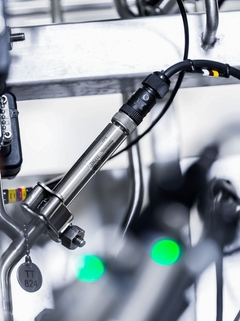

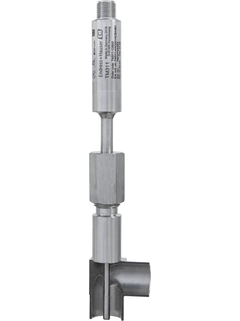

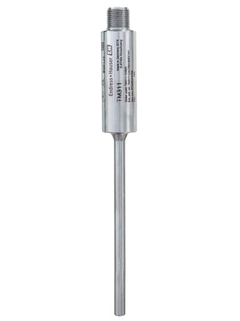

iTHERM CompactLine TM311 sanitary thermometer provides accurate and fast process temperature measurements in hygienic and aseptic applications. Its temperature sensor offers a 4-wire connection or feeds into a smart temperature transmitter with 4 to 20 mA, IO-Link (auto-detect) or switch output. Featuring TipSens technology, the RTD (Pt100; Class A) delivers response times as low as 1.5 s (t90) for optimum process control. This versatile device is a great choice to drive plant standardization.
Developed for universal use in sterile applications
High standardization potential for skid builders, machine and plant manufacturers
Measuring range: -50 to 200 °C (-58 to 392 °F)
Pressure range: Up to 50 bar (725 psi)
Protection class: IP69
Output: Pt100 (4-wire connection); IO-Link, 4 to 20 mA, 1x PNP switch
International approvals: 3-A, EHEDG, ASME BPE, FDA, EC 1935/2004, EN 2023/2006, TSE/ADI, GB4806-2016, GB9685-2016; Marine approval acc. to DNV GL
Prednosti
Fast installation and easy commissioning:
- Compact dimensions for installation in tight spaces
- Standard M12 connector with IP69 for easy electrical connection
- Recommended process immersion lengths for optimum measurement
- Preset temperature rangeExcellent temperature measurement performance:
- Short response times as low as 1.5 s (t90)
- High sensor accuracy even with short immersion lengths
- Improved measuring accuracy with transmitter-sensor matchingSafe and reliable operation:
- Device safety to EN 610101-1 and CSA C/US
- Electromagnetic compatibility (NAMUR NE 21)
- Device diagnostic information (NAMUR NE 43)
- Hygienic design manufactured from high-grade stainless steel
- Marine approval
Videoposnetki
Segment Fundamental
-
Enostavni produkti
- Lahka izbira, vgradnja in uporaba
Tehnična odličnost
Preprostost
-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Specialni produkti
- Zasnovani za posebej zahtevne aplikacije
Tehnična odličnost
Preprostost
Spremenljivo
| FLEX izbira | Tehnična odličnost | Preprostost |
|---|---|---|
Segment Fundamental Zadostite svojim osnovnim merilnim potrebam |
Tehnična odličnost
|
Preprostost
|
Segment Lean Obvladajte ključne procese na preprost način |
Tehnična odličnost
|
Preprostost
|
Segment Extended Optimirajte procese z inovativnimi tehnologijami |
Tehnična odličnost
|
Preprostost
|
Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije |
Tehnična odličnost
|
Preprostost
Spremenljivo |
Loading alternative products
Zgodbe o uspehu
Morda vas zanima tudi
Največkrat preneseno
-
-
Tehnične informacije (TI)
iTHERM CompactLine TM311
Angleška različica - 10/2022
Compact thermometer, Pt100, 4-wire connection, class A Optionally with integrated IO-Link and 4 to 20 mA transmitter, PC programmable
EN SL 31/10/202231/03/202230/06/202001/04/2019Jezik:
angleščina
Verzija:
31/10/2022
Velikost datoteke:
1.4 MB
Ime datoteke:
TI01439TEN_0422-00.pdf
-
Dokumenti 32
-
-
Tehnične informacije (TI)
TI Weld-in adapter, process adapter and flanges
Level, pressure and temperature measurement
EN SL 25/03/202415/09/202328/10/202130/07/202119/06/2020Jezik:
angleščina
Verzija:
25/03/2024
Velikost datoteke:
1.1 MB
Ime datoteke:
TI00426FEN_2524.pdf
-
-
-
Tehnične informacije (TI)
iTHERM CompactLine TM311
Compact thermometer, Pt100, 4-wire connection, class A
Optionally with integrated IO-Link and 4 to 20 mA transmitter, PC
programmableEN SL 31/10/202231/03/202230/06/202001/04/2019Jezik:
angleščina
Verzija:
31/10/2022
Velikost datoteke:
1.4 MB
Ime datoteke:
TI01439TEN_0422-00.pdf
-
-
-
Navodila za uporabo (BA)
iTHERM CompactLine TM311
Compact thermometer with IO-Link
EN SL 31/10/202231/03/202229/06/202002/09/2019Jezik:
angleščina
Verzija:
31/10/2022
Velikost datoteke:
1.7 MB
Ime datoteke:
BA01952TEN_0422-00.pdf
-
-
-
Kratka navodila (KA)
iTHERM CompactLine TM311
Kompakten termometer s funkcijo IO-Link
EN SL 22/06/202012/08/2019Jezik:
slovenščina
Verzija:
22/06/2020
Velikost datoteke:
538 KB
Ime datoteke:
KA01437TSL_0220.pdf
-
-
-
Posebna dokumentacija (SD)
Device viewer
Technical documentation in other languages
Jezik:
angleščina
Verzija:
14/07/2021
Velikost datoteke:
478.5 KB
Ime datoteke:
SD02429R09EN_0121.pdf
-
-
-
Posebna dokumentacija (SD)
SD Endress+Hauser IO-Link devices
Endress+Hauser IO-Link function blocks
For Siemens TIA PortalEN SL 01/12/2024Jezik:
angleščina
Verzija:
01/12/2024
Velikost datoteke:
4.2 MB
Ime datoteke:
SD03368SEN_0124-00.pdf
-
-
-
Posebna dokumentacija (SD)
SD Hygienic process connection types
Supplement to TM311, TM371, TM372, TM401, TM411, TM402, TM412, TT411,
TT412, TE411, TK40, TMR35, DTT35, TTR35Jezik:
angleščina
Verzija:
15/09/2023
Velikost datoteke:
800.3 KB
Ime datoteke:
SD03119TEN_0123-00.pdf
-
-
-
PU (objava)
Misura della temperatura e componenti di sistema per i settori alimentare e farmaceutico.
Misura della temperatura e componenti di sistema per i settori
alimentare e
farmaceutico.
La nuova frontiera dell'igiene: un'offerta complete per applicazioni
igieniche e asetticheJezik:
italijanščina
Verzija:
10/01/2020
Velikost datoteke:
11.2 MB
Ime datoteke:
EH_Booklet COMPLETO.pdf
-
-
-
Brošura za področje dejavnosti (CP)
The ideal device for each industry
Temperature and system products from Endress+Hauser
Jezik:
angleščina
Verzija:
30/11/2023
Velikost datoteke:
1.9 MB
Ime datoteke:
CP01556T Industry Fan.pdf
-
-
-
Brošura za področje dejavnosti (CP)
Das ideale Gerät für jede Branche
Temperatur- und Systemprodukte von Endress+Hauser
Jezik:
nemščina
Verzija:
09/01/2024
Velikost datoteke:
1.9 MB
Ime datoteke:
CP01556T Industry Fan.pdf
-
Iskanje nadomestnih delov po številki iz risbe
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
O-ring 14.9x2.7 VMQ, FDA, 5 pcs.
-
further parts
Kataloška koda52021717 -
-
O-ring 21.89x2.62 VMQ, FDA, 5 pcs.
-
further parts
Kataloška koda52014473 -
-
O-ring 28.17x3.53 VMQ, FDA, 5 pcs.
-
further parts
Kataloška koda52014472 -
-
Profile gasket 29x36x3.7, FDA, 5 pcs.
-
further parts
Kataloška koda52014424 -
-
iTHERM TT411 Thermowell
-
further parts
Kataloška kodaTT411- -
-
iTHERM CompactLine TM311
-
further parts
Kataloška kodaTM311- -
-
Collar welded socket d6 PEEK + screw
Kataloška koda71535690 -
Collar welded socket d6 PEEK w/o screw
Kataloška koda71535691 -
plug screw fitting G1/2 1.4435
Kataloška koda60022519 -
Weld in adapter M12x1.5 1.4435/316L
Kataloška koda71405560 -
G1/2 metal to metal weld in adapter
Kataloška koda71424800 -
Plug screw fitting 316L M12x1.5
Kataloška koda71535692 -
Weld-in adapter G3/4 d=50, 316L, 3.1
Kataloška koda52018765 -
Weld-in adapter G3/4, d=29, 316L, 3.1
Kataloška koda52028295 -
Weld-in adapter G3/4, d=55, 316L
Kataloška koda52001052 -
Weld-in adapter G3/4, 316L, 3.1
Kataloška koda52011897 -
Weld-in adapter G1, d=53, 316L, 3.1
Kataloška koda71093129 -
Weld-in adapter G1, d=60, 316L
Kataloška koda52001051 -
Weld-in adapter G1, d=60, 316L, 3.1
Kataloška koda52011896 -
Weld-in adapter G1, adjustable, 316L
Kataloška koda52001221 -
Weld-in adapter G1, adjustable,316L, 3.1
Kataloška koda52011898 -
Adapter cable, PIN, TM311 to TMR3x
Kataloška koda71449142 -
Cordset 4p D18 IP69K
Kataloška koda71217708 -
Cable connector M12 IP69k 5m
Kataloška koda71589963 -
M12 elbow plug ready for cable, IP67,PG7
Kataloška koda71535693 -
Compression Fitting TK40
Kataloška kodaTK40-
