Lastnosti na dlani
-
Accuracy
0,075% + influence of diaphragm seal
-
Process temperature
-40°C...400°C
(-40°F...752°F) -
Pressure measuring range
100mbar...40bar
(1.5psi ... 600 psi) -
Process pressure / max. overpressure limit
160bar (2400 psi)
-
Main wetted parts
Alloy C276
316L
Monel
Tantalum -
Max. measurement distance
400m (1312ft) H2O
-
Material process membrane
316L, AlloyC,
Tantal,
Gold-Rhodium
PTFE -
Measuring cell
100 mbar...40 bar
(40 inH2O...600 psi)
Področje uporabe

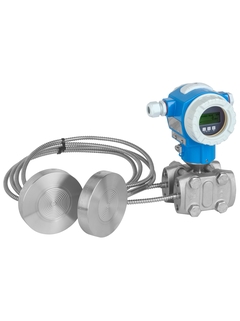

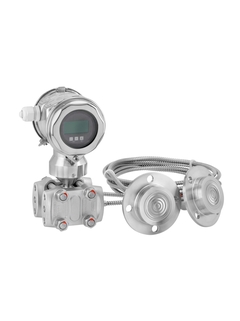

The Deltabar FMD78 differential pressure transmitter with metal sensor uses two capillary diaphragm seals. Typically used in process and hygiene applications for continuous measurement of pressure differences in liquids, vapors, gases and dusts. The integrated HistoROM data module makes the management of process and device parameters easy. Designed according to IEC 61508 for use in SIL3 safety applications.
For differential pressure, level, volume or mass measurement in liquids.
Process connections: Threads, flanges, pancake and hygienic connections
Process temperature: -70 up to +400°C (-94 to +752°F)
Measuring ranges: 100mbar to +40 bar (1.5 to 600psi)
Accuracy: ±0.075%
International explosion protection certificates, overfill prevention WHG, hygienic approvals, marine approvals, SIL
Prednosti
Large variety of different process connections and membrane materials
New TempC Membrane for diaphragm seals: Minimum temperature effects and short recovery times
Highest safety due to gas tight feedthrough with capabilities up to SIL2/3, certified to IEC 61508
Easy menu-guided commissioning via local display, 4 to 20 mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
Cost savings with modular concept for easy replacement of sensor, display or electronics
Seamless and independent system integration (HART/PA/FF)
