Lastnosti na dlani
-
Accuracy
Standard: 0.05%
Platinum: up to 0.025% -
Process temperature
-40°C...150°C
(-40°F...302°F) -
Pressure measuring range
100mbar...40bar
(1.5psi...600psi) -
Process pressure / max. overpressure limit
60bar (900psi)
-
Main wetted parts
Ceraphire ceramic
Alloy C
316L
Monel
PVDF -
Max. measurement distance
400m (1312ft) H2O
-
Material process membrane
Ceramic
-
Measuring cell
100 mbar...40 bar
(1.5 psi...600 psi)
relative/ absolute
Področje uporabe

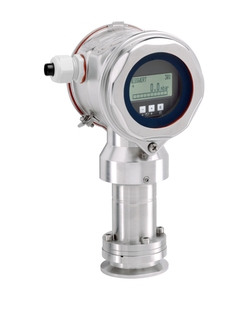

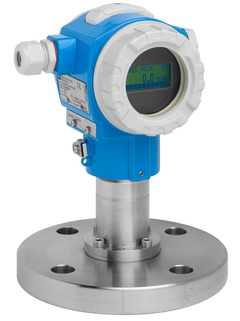

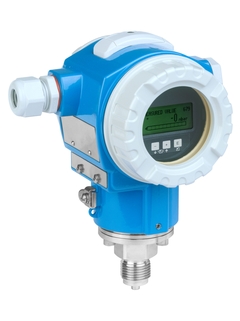

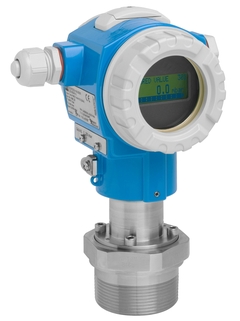

The Cerabar PMC71 digital pressure transmitter with capacitive, oil-free ceramic measuring cell is typically used in the process and hygienic applications for pressure, level, volume or mass measurement in liquids and gases. It guarantees high degree of system safety thanks to vacuum-proof ceramic membrane with integrated breakage detection. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2/3 according to IEC 61508.
Two chamber aluminum or stainless steel (316L) housing.
Process connections: Threads, flanges or hygienic connections
Process temperature: -40 to +150°C (-40 to +302°F)
Measuring ranges: -1/0 up to to +40bar (+1.5 to +600psi)
Accuracy: ±0.05%, "Platinum" ±0.025%
International explosion protection certificates, overfill prevention WHG, SIL, hygienic approvals, marine approvals
Prednosti
Best fit for vacuum applications and applications with corrosive and abrasive media
Process safety through membrane breakage detection
Overload-resistant high purity ceramic sensor (99.9% Al2O3)
HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
Highest safety due to gastight feedthrough with capabilities up to SIL2/3, certified to IEC 61508

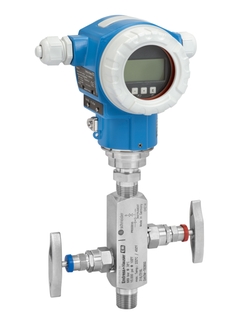

Available with mounted manifolds: always fit, always tested for leaks
Videoposnetki
Segment Extended
-
Vrhunski produkti
- Visoko funkcionalni in praktični
Tehnična odličnost
Preprostost
-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Specialni produkti
- Zasnovani za posebej zahtevne aplikacije
Tehnična odličnost
Preprostost
Spremenljivo
| FLEX izbira | Tehnična odličnost | Preprostost |
|---|---|---|
Segment Fundamental Zadostite svojim osnovnim merilnim potrebam |
Tehnična odličnost
|
Preprostost
|
Segment Lean Obvladajte ključne procese na preprost način |
Tehnična odličnost
|
Preprostost
|
Segment Extended Optimirajte procese z inovativnimi tehnologijami |
Tehnična odličnost
|
Preprostost
|
Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije |
Tehnična odličnost
|
Preprostost
Spremenljivo |
Loading alternative products
Predhodnik
Zgodbe o uspehu
Največkrat preneseno
-
-
Tehnične informacije (TI)
TI Cerabar S PMC71, PMP71, PMP75
Angleška različica - 04/2024
Process pressure measurement 1-5 V DC, HART, PA, FF
EN SL 01/04/202413/01/202229/09/202001/04/202016/04/2019Jezik:
angleščina
Verzija:
01/04/2024
Velikost datoteke:
3.5 MB
Ime datoteke:
TI00383PEN_3624-00.pdf
-
-
-
Navodila za uporabo (BA)
Cerabar S Operating Instructions HART, Software version 7.1
Angleška različica - 01/2004
Cerabar S PMC631, PMC731, PMP635, PMP731, Pressure transmitter
EN SL 01/01/200401/03/200301/04/1999Jezik:
angleščina
Verzija:
01/01/2004
Velikost datoteke:
1.9 MB
Ime datoteke:
BA187PEN.pdf
-
Dokumenti 251
-
-
Tehnične informacije (TI)
TI Weld-in adapter, process adapter and flanges
Level, pressure and temperature measurement
EN SL 25/03/202415/09/202328/10/202130/07/202119/06/2020Jezik:
angleščina
Verzija:
25/03/2024
Velikost datoteke:
1.1 MB
Ime datoteke:
TI00426FEN_2524.pdf
-
-
-
Tehnične informacije (TI)
TI Cerabar S PMC71, PMP71, PMP75
Process pressure measurement
1-5 V DC, HART, PA, FFEN SL 01/04/202413/01/202229/09/202001/04/202016/04/2019Jezik:
angleščina
Verzija:
01/04/2024
Velikost datoteke:
3.5 MB
Ime datoteke:
TI00383PEN_3624-00.pdf
-
-
-
Navodila za uporabo (BA)
Cerabar S /Deltabar S /Deltapilot S Description of device functions PROFIBUS PA V04.01.zz
Cerabar S PMC71, PMP71, PMP75 Pressure transmitter
Deltabar S FMD77, FMD78, PMD75 Differential pressure
transmitter
Deltapilot S FMB70 Hydrostatic pressure transmitterEN SL 03/04/201710/12/201407/08/201301/10/201101/05/2010Jezik:
angleščina
Verzija:
03/04/2017
Velikost datoteke:
4.8 MB
Ime datoteke:
BA00296PEN_1616.pdf
-
-
-
Navodila za uporabo (BA)
Cerabar S PMC71, PMP71, PMP75 HART V02.30.zz Operating Instructions
Pressure transmitter with ceramic and metal sensors
EN SL 01/03/201810/12/201401/11/201407/05/201417/01/2013Jezik:
angleščina
Verzija:
01/03/2018
Velikost datoteke:
2 MB
Ime datoteke:
BA00271PEN_1916.pdf
-
-
-
Navodila za uporabo (BA)
Cerabar S PMC71, PMP71, PMP75 PROFIBUS PA (V 04.01.zz) Operating Instructions
Pressure transmitter with ceramic and metal sensors
Overload-resistant and function-monitored;
Communication via
PROFIBUSPAEN SL 03/04/201710/12/201407/05/201407/08/201303/02/2012Jezik:
angleščina
Verzija:
03/04/2017
Velikost datoteke:
3.3 MB
Ime datoteke:
BA00295PEN_1816.pdf
-
-
-
Navodila za uporabo (BA)
Cerabar S / Deltabar S / Deltapilot S, Description of device functions FOUNDATION Fieldbus V 04.00.zz
Cerabar S PMC71, PMP71, PMP75 Pressure transmitter
Deltabar S FMD77, FMD78, PMD75 Differential pressure
transmitter
Deltapilot S FMB70 Hydrostatic pressure transmitterEN SL 03/04/201710/12/201407/05/201430/04/201301/10/2011Jezik:
angleščina
Verzija:
03/04/2017
Velikost datoteke:
6.3 MB
Ime datoteke:
BA00303PEN_1716.pdf
-
-
-
Navodila za uporabo (BA)
Cerabar S Operating Instructions HART, Software version 7.1
Cerabar S PMC631, PMC731, PMP635, PMP731, Pressure transmitter
EN SL 01/01/200401/03/200301/04/1999Jezik:
angleščina
Verzija:
01/01/2004
Velikost datoteke:
1.9 MB
Ime datoteke:
BA187PEN.pdf
-
-
-
Navodila za uporabo (BA)
Cerabar S PMC71, PMP71, PMP75 FOUNDATION Fieldbus (V 04.00.zz) Operating Instructions
Pressure transmitter with ceramic and metal sensors
Overload-resistant and function-monitored;
Communication via
FOUNDATION FieldbusEN SL 03/04/201710/12/201407/05/201430/04/201303/02/2012Jezik:
angleščina
Verzija:
03/04/2017
Velikost datoteke:
4.3 MB
Ime datoteke:
BA00302PEN_1816.pdf
-
-
-
Navodila za uporabo (BA)
Cerabar S / Deltabar S / Deltapilot S HART V02.30.zz Description of Instrument Functions
Cerabar S PMC71, PMP71, PMP75 Pressure transmitter
Deltabar S FMD77, FMD78, PMD75 Differential pressure transmitter
Deltapilot S FMB70 Hydrostatic pressure transmitterEN SL 01/03/201810/12/201401/11/201407/05/201417/01/2013Jezik:
angleščina
Verzija:
01/03/2018
Velikost datoteke:
4.8 MB
Ime datoteke:
BA00274PEN_1816.pdf
-
-
-
Kratka navodila (KA)
Cerabar S, Deltabar S, Deltapilot S
Cerabar S, Deltabar S, Deltapilot S
Process pressure measurement/differntial pressure
measurement/hydrostatic level measurement
V 04.00.zzEN SL 10/12/201430/04/201301/10/201122/09/200815/05/2008Jezik:
angleščina
Verzija:
10/12/2014
Velikost datoteke:
579.8 KB
Ime datoteke:
KA00252PA2_1514.pdf
-
Iskanje nadomestnih delov po številki iz risbe
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Mounting set housing T14/T15 sensor
-
Housing/housing accessories
Številka risbeKataloška koda1252020440 -
-
Mounting set housing T17 / sensor
-
Housing/housing accessories
Številka risbeKataloška koda1271020596 -
-
Push button housing, PA/FF
-
Housing/housing accessories
Številka risbeKataloška koda1352022418 -
-
Push button housing, HART, version 1
-
Housing/housing accessories
Številka risbeKataloška koda1352022419 -
-
Push button housing, HART, version 2
-
Housing/housing accessories
Številka risbeKataloška koda1352024110 -
-
Cable gland M20, gasket
-
Adapter housing/cable entry
Številka risbeKataloška koda1552020760 -
-
Cable entry G1/2, gasket, adapter
-
Adapter housing/cable entry
Številka risbeKataloška koda1552020761 -
-
Plug 2/7-pole, HAN7D, gasket
-
Adapter housing/cable entry
Številka risbeKataloška koda1552020762 -
-
Plug 3-pole, M12, gasket
-
Adapter housing/cable entry
Številka risbeKataloška koda1552020763 -
-
Housing filter VA, EPDM, 1 piece
-
further parts
Kataloška koda71111056 -
-
Housing filter VA, VMQ, F15, T17, 1 pc.
-
further parts
Kataloška koda71219639 -
-
Cover T14/T15 Alu, gasket
-
Cover
Številka risbeKataloška koda2052020432 -
-
Cover T14/T15 Alu, Ex d, gasket
-
Cover
Številka risbeKataloška koda2052020433 -
-
Cover T14 316L, Ex d, EPDM
-
Cover
Številka risbeKataloška koda2052028310 -
-
Cover T17 316L, gasket
-
Cover
Številka risbeKataloška koda2071002774 -
-
Cover T17 316L, sight glass, gasket
-
Cover
Številka risbeKataloška koda2071002810 -
-
Cover T17 316L, sight glass PC, gasket
-
Cover
Številka risbeKataloška koda2071002811 -
-
Cover T14/T15 Alu, sight glass, gasket
-
Cover
Številka risbeKataloška koda2071245247 -
-
Cover T14/T15 Alu,Exd,sight glass,gasket
-
Cover
Številka risbeKataloška koda2071245249 -
-
Sealing EPDM, F30/31/34, T14/15, 5 pcs.
-
Sealing
Številka risbeKataloška koda2152020429 -
-
Cover sealing FVQM, T14, 5 pieces
-
Sealing
Številka risbeKataloška koda2171206971 -
-
Cable PE,80inch,sep. housing FMXXX/PMXXX
-
further parts
Kataloška koda71043886 -
-
Cable PE,200inch,sep.housing FMXXX/PMXXX
-
further parts
Kataloška koda71043888 -
-
Cable PE,400inch,sep.housing FMXXX/PMXXX
-
further parts
Kataloška koda71043889 -
-
Cable FEP,200inch,sep.housingFMXXX/PMXXX
-
further parts
Kataloška koda71070738 -
-
Ground terminal T14/T15/T17, F30/F31
-
further parts
Kataloška koda71290825 -
-
Cover T14/T15 Alu, gasket
-
Cover
Številka risbeKataloška koda2552020432 -
-
Cover T14/T15 Alu, Ex d, gasket
-
Cover
Številka risbeKataloška koda2552020433 -
-
Cover T14 316L, Ex d, EPDM
-
Cover
Številka risbeKataloška koda2552028310 -
-
Cover T17 316L, gasket
-
Cover
Številka risbeKataloška koda2571002774 -
-
Cover T14 316L, Ex d, FVMQ
-
Cover
Številka risbeKataloška koda2071206965 -
-
Cover T14 316L, Ex d, sight glass, FVMQ
-
Cover
Številka risbeKataloška koda2071206968 -
-
Cover T14 316L, Ex d, sight glass, EPDM
-
Cover
Številka risbeKataloška koda2071245250 -
-
Cover T14 316L, Ex d, FVMQ
-
Cover
Številka risbeKataloška koda2571206965 -
-
Electronics HART Ex, ext. p. b., v2.0
-
Electronic
Številka risbeKataloška koda3052024111 -
-
Electronics HART Ex, v2.0
-
Electronic
Številka risbeKataloška koda3052024400 -
-
Electronics HART Ex, v2.10
-
Electronic
Številka risbeKataloška koda3071026358 -
-
Electronics HART Ex, ext. p. b., v2.10
-
Electronic
Številka risbeKataloška koda3071026359 -
-
Electronic HART Ex, v2.11
-
Electronic
Številka risbeKataloška koda3071196092 -
-
Electronics HART Ex, ext. p. b., v2.11
-
Electronic
Številka risbeKataloška koda3071196093 -
-
Upgrade electronics HART Ex, v2.1
-
further parts
Kataloška koda52026762 -
-
Upgrade electr. HART Ex,ext.push b.,v2.1
-
further parts
Kataloška koda52026763 -
-
Electronics PA, HW02.00, SW4.0
-
Electronic
Številka risbeKataloška koda3071071824 -
-
Electronics PA, ext. p.b., HW02.00,SW4.0
-
Electronic
Številka risbeKataloška koda3071071825 -
-
Electronics FF, HW2.00, SW3.00
-
Electronic
Številka risbeKataloška koda3071071826 -
-
Electronics FF, ext. p.b., HW2.00,SW3.00
-
Electronic
Številka risbeKataloška koda3071071827 -
-
Electronics PA, Ex, HW2.00, SW3.00
-
Electronic
Številka risbeKataloška koda3071214057 -
-
Electronics PA, ext. p.b.,HW2.00, SW3.00
-
Electronic
Številka risbeKataloška koda3071214064 -
-
Electronics FF, ext. p.b.,HW2.00, SW2.00
-
Electronic
Številka risbeKataloška koda3071214066 -
-
Electronics FF, HW2.00, SW2.00
-
Electronic
Številka risbeKataloška koda3071214069 -
-
Electronics FF, ext. p.b.,HW2.00, SW4.00
-
Electronic
Številka risbeKataloška koda3071214890 -
-
Electronics FF, HW2.00, SW4.00
-
Electronic
Številka risbeKataloška koda3071214892 -
-
Electronics PA, HW02.00, SW4.01
-
Electronic
Številka risbeKataloška koda3071224775 -
-
Electronics PA, ext.p. b.,HW02.00,SW4.01
-
Electronic
Številka risbeKataloška koda3071224776 -
-
Electronics HART Ex, v2.20
-
Electronic
Številka risbeKataloška koda3071263933 -
-
Electronics HART Ex, ext. p. b., v2.20
-
Electronic
Številka risbeKataloška koda3071263934 -
-
Elektronics HART Ex, v2.30
-
Electronic
Številka risbeKataloška koda3071386147 -
-
Electronics HART Ex, ext. p. b., v2.30
-
Electronic
Številka risbeKataloška koda3071386153 -
-
HistoROM / M-DAT, 16K
-
Memory
Številka risbeKataloška koda3152027785 -
-
Terminal 2-pole, RFI, FF, Ex
-
Terminal module
Številka risbeKataloška koda3552027691 -
-
Terminal 2-pole, RFI, PA, OVP, Ex
-
Terminal module
Številka risbeKataloška koda3571028475 -
-
Terminal 2-pole, RFI, FF, OVP, Ex
-
Terminal module
Številka risbeKataloška koda3571028476 -
-
Terminal 2-pole, RFI, PA, Ex
-
Terminal module
Številka risbeKataloška koda3571121574 -
-
Terminal 3-pole,Li=0, RFI,HART,Ex ia/Exd
-
Terminal module
Številka risbeKataloška koda3571191892 -
-
Termin.3-p.,Li=0,RFI,HART,OVP,Ex ia/Exd
-
Terminal module
Številka risbeKataloška koda3571191894 -
-
Display module VU340, Cbar/Dbar/Dpilot S
-
Display
Številka risbeKataloška koda4071002865 -
-
Adapter PMC71X/51B G1/2,d11,4,Da30,316L
-
Connection (process)
Številka risbeKataloška koda5552020217 -
-
Adapter PMC71 PF1/2, d3, 316L, 3.1
-
Connection (process)
Številka risbeKataloška koda5552020224 -
-
Adapter PMC71 G1/2, d11.4, 316L, 3.1
-
Connection (process)
Številka risbeKataloška koda5552020225 -
-
Adapter PMC71 PT1/2, d11.4, 316L, 3.1
-
Connection (process)
Številka risbeKataloška koda5552020226 -
-
Adapter PMC71 NPT1/2, d11.4, 316L, 3.1
-
Connection (process)
Številka risbeKataloška koda5552020227 -
-
Adapter PMC71 NPT1/2, NPT1/4, 316L, 3.1
-
Connection (process)
Številka risbeKataloška koda5552020228 -
-
Adapter PMC71 M20, d3, 316L, 3.1
-
Connection (process)
Številka risbeKataloška koda5552020229 -
-
Adapter PMC71 G1/2, d3, 316L, 3.1
-
Connection (process)
Številka risbeKataloška koda5552020230 -
-
Adapter Cbar S G1-1/2 ISO228,316L,screws
-
Connection (process)
Številka risbeKataloška koda5571007932 -
-
Spacer for process adapter, screws
-
Fixing
Številka risbeKataloška koda5852020441 -
-
O-ring 26.7x1.78 FKM 70, O2, 5 pieces
-
Sealing
Številka risbeKataloška koda5752010137 -
-
O-ring 26.7x1.78 HNBR 75, 3A, FDA, 5 pcs
-
Sealing
Številka risbeKataloška koda5752010155 -
-
O-ring 26.7x1.78 EPDM 70, 3A, USP, 5 pcs
-
Sealing
Številka risbeKataloška koda5752017989 -
-
O-ring 26.7x1.78 FKM70,degreased, 5 pcs.
-
Sealing
Številka risbeKataloška koda5752020768 -
-
O-ring 26.7x1.78 NBR 70, 5 pieces
-
Sealing
Številka risbeKataloška koda5752020769 -
-
O-ring 26.7x1.78 EPDM 70, 5 pieces
-
Sealing
Številka risbeKataloška koda5752020770 -
-
O-ring 26.7x1.78 FKM -40oC, 5 pieces
-
Sealing
Številka risbeKataloška koda5752020771 -
-
O-ring 26.7x1.78 FFKM 70 KALREZ, 1 pc.
-
Sealing
Številka risbeKataloška koda5752020772 -
-
O-ring 26.7x1.78 FFKM 75 CHEMRAZ, 1 pc.
-
Sealing
Številka risbeKataloška koda5752020773 -
-
O-ring 26.7x1.78 FKM, FDA, 5 pieces
-
Sealing
Številka risbeKataloška koda5771093308 -
-
O-ring 27.1x1.6 FFKM 75 Perlast, 1pc.
-
Sealing
Številka risbeKataloška koda5771316464 -
-
Sensor Cerabar S PMC71
-
Sensoric
Številka risbeKataloška koda50PMC71X- -
-
Screw set, M5x16, 4 pieces
-
further parts
Kataloška koda71495134 -
-
Flat seal 50x65x1 PTFE, FDA, 5 pieces
-
further parts
Kataloška koda52024228 -
-
Modification name plate, non Ex
-
further parts
Kataloška koda71067434 -
-
Adapterk. FMR2xx,FMx4x,PMx7x,FMD7x,FMG60
-
further parts
Kataloška koda71000221 -
-
Mountingset Cerabar,Deltapilot,Levelflex
Kataloška koda71102216 -
Mountingset, housing T14, special
Kataloška koda71304770 -
Mounting bracket 2 valve,stainless steel
Kataloška koda71372498 -
Weld-in adapter G1-1/2, 316L
Kataloška koda52024469 -
Weld-in adapter G1-1/2, 316L, 3.1
Kataloška koda52024470 -
Weld-in adapter DRD DN50, 316L
Kataloška koda52002041 -
Weld-in adapter DRD DN50, 316L, 3.1
Kataloška koda52011899 -
ToF Adapter FXA291
Kataloška koda71007843 -
Spare RFID TAG
Kataloška kodaXPRFID- -
Flushing ring NPS 1" Cl. 150-2500, 316L
Kataloška koda71377369 -
Flushing ring NPS 2" Cl. 150-2500, 316L
Kataloška koda71377370 -
Flushing ring NPS 3" Cl. 150-2500, 316L
Kataloška koda71377371 -
Flushing ring DN25, PN16-400, 316L
Kataloška koda71377379 -
Flushing ring DN50, PN16-400, 316L
Kataloška koda71377380 -
Flushing ring DN80, PN16-400, 316L
Kataloška koda71377383
5 products & bundles
Izdelki 5
Pogosto kupljeno skupaj
Dodatna oprema
Sorodni izdelki
