Lastnosti na dlani
-
Measuring range
0 to 2.5 AU
0 to 50 OD (depending on optical pathlength) -
Process temperature
0 to 90 °C (32 to 194 °F) continuous
Max. 130 °C (266 °F) for 2 hours -
Process pressure
Max. 100 bar (1450 psi) absolute, depending on the material, pipe size and process connection of the flow assembly
Področje uporabe

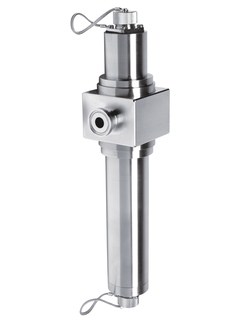

The OUSAF44 UV sensor monitors the concentration of your product in process liquids. Its outstanding filter performance ensures highest linearity and full consistency with lab results. This provides you with fast and reliable process information and increases the yield of your product. You also benefit from EasycalTM – the patented system for easy, liquid-free online calibration traceable to NIST. OUSAF44 is approved for hazardous areas (ATEX, FM) and suitable for hygienic processes (CIP/SIP).
The OUSAF44 sensor measures the UV absorption for:
Measurement of protein concentrations
Chromatography control
Permeate and retentate monitoring
Concentration measurement of organic compounds
Aromatics detection
Filter monitoring
With its international explosion-protection approvals, such as ATEX and FM, the sensor is suitable for hazardous area use.
Prednosti
Fast and reliable monitoring of product concentration for better process control and simplified quality control
Precise measured values with full consistency to laboratory results
Patented EasycalTM system option for easy, liquid-free online calibration traceable to NIST
Low-maintenance sensor with long service life and stable operation
Outstanding filter performance provides highest linearity
Suitable for cleaning-in-place (CIP) and sterilization-in-place (SIP)
Approved for hazardous area use
Segment Extended
-
Vrhunski produkti
- Visoko funkcionalni in praktični
Tehnična odličnost
Preprostost
-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Specialni produkti
- Zasnovani za posebej zahtevne aplikacije
Tehnična odličnost
Preprostost
Spremenljivo
FLEX izbira | Tehnična odličnost | Preprostost |
---|---|---|
Segment Fundamental Zadostite svojim osnovnim merilnim potrebam |
Tehnična odličnost
|
Preprostost
|
Segment Lean Obvladajte ključne procese na preprost način |
Tehnična odličnost
|
Preprostost
|
Segment Extended Optimirajte procese z inovativnimi tehnologijami |
Tehnična odličnost
|
Preprostost
|
Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije |
Tehnična odličnost
|
Preprostost
Spremenljivo |
-
-
Tehnične informacije (TI)
OUSAF44
Optical sensor combined with the OUA260 flow assembly for the
measurement of UV absorptionEN SL 07/12/202231/10/201831/03/201601/12/200901/07/2007Jezik:
angleščina
Verzija:
07/12/2022
Velikost datoteke:
536.9 KB
Ime datoteke:
TI00416CEN_1622-00.pdf
-
-
-
Navodila za uporabo (BA)
OUSAF44
Optični senzor s pretočno armaturo OUA260 za merjenje absorpcije
UV-sevanjaEN SL 07/12/202230/09/201801/06/201731/03/201601/11/2010Jezik:
slovenščina
Verzija:
07/12/2022
Velikost datoteke:
1.5 MB
Ime datoteke:
BA00416CSL_1822-00.pdf
-
-
-
Navodila za uporabo (BA)
Operating Instructions Model OUM960 UV Analyzer/ Model OUSAF44 UV Inline Sensor
Analyzer/Sensor to measure UV Spectral Absorbance
Jezik:
angleščina
Verzija:
01/06/2009
Velikost datoteke:
4.6 MB
Ime datoteke:
PN71002849_OUM960_OUSAF44-R3_Manual_EH.pdf
-
-
-
Navodila za uporabo (BA)
Operating Instructions Model OUM960 UV Analyzer / Model OUSAF44 EXP-1 Inline Sensor
Analyzer/Sensor to measure UV Spectral Absorbance
Jezik:
angleščina
Verzija:
01/06/2009
Velikost datoteke:
4.6 MB
Ime datoteke:
PN71097011_OUM960_OUSAF44-EXP-1-R1_Manual_EH.pdf
-
-
-
Kratka navodila (KA)
Integra OUM960/ OUSAF44 EXP-1
Analyzer/Sensor to measure UV Spectral Absorbance
Jezik:
angleščina
Verzija:
01/06/2009
Velikost datoteke:
276.4 KB
Ime datoteke:
KA925C_Quick_Start-up_Guide_OUM960_OUSAF44 EXP-1_06-09_WA_-_71097021_small.pdf
-
-
-
Kratka navodila (KA)
Integra OUM960/ OUSAF44
Analyzer/Sensor to measure UV Spectral Absorbance
Jezik:
angleščina
Verzija:
01/06/2009
Velikost datoteke:
232.2 KB
Ime datoteke:
KA924C_Quick_Start-up_Guide_OUM960_OUSAF44_0609_WA-71097018.pdf
-
-
-
Ex varnostna navodila (XA)
XA OUSAF12, OUSAF21, OUSAF22, OUSAF44, OUSAF46, OUSTF10
Process photometer sensors
UK Ex II 2G Ex db IIC T5 GbJezik:
angleščina
Verzija:
02/11/2022
Velikost datoteke:
533.1 KB
Ime datoteke:
XA02914CEN_0122-00.pdf
-
-
-
Ex varnostna navodila (XA)
OUSAF12, OUSAF21, OUSAF22, OUSAF44, OUSAF46, OUSTF10 Sicherheitshinweise für elektrische Betriebsmittel im explosionsgefährdeten Bereich Safety instructions for electrical apparatus for explosion-hazardous areas Conseils de sécurité pour matériels électriques destinés aux zones explosibles Safety Instructions
Safety instructions for electrical apparatus for explosion-hazardous
areasEN SL 10/01/201831/12/201730/09/201631/03/2016Jezik:
angleščina
Verzija:
10/01/2018
Velikost datoteke:
4.7 MB
Ime datoteke:
XA01403CA3_0418.pdf
-
-
-
PU (objava)
Endress+Hauser - your one-source Life Sciences technology partner
Graphic highlighting why Endress+Hauser is trusted by the
world's top biopharmaceutical manufacturers for its Life
Sciences expertise and reliable inline, real-time measurement
technologies like Raman spectroscopy systems (Raman Rxn2,
Raman Rxn4, Rxn-10, Rxn-45, Rxn-46, bio multi optic and sleeve,
flow cell and flow bench, Raman optic system for single use) and
liquid analysis sensor technology (Liquiline CM44P, CM442 and
OUSAF44, OUSBT66 and Memosens CPS61E, CLS82E, COS81E,
CLS82E).Jezik:
angleščina
Verzija:
27/06/2024
Velikost datoteke:
1.9 MB
Ime datoteke:
PU01585CEN_0124.pdf
-
-
-
PU (objava)
Prioritize scalability for an efficient biopharmaceutical product development lifecycle
This technical paper studies the importance of scalability as a
competitive advantage in bioprocessing in the Life Science industry,
and Endress+Hauser's scalable Raman systems (Raman Rxn2,
Raman Rxn4, Rxn-10, Rxn-45, Rxn-46, bio multi optic and sleeve,
flow cell and flow bench, Raman optic system for single use) and
liquid analysis sensor technology and Liquid Analysis portfolio
(Liquiline CM44P, CM442 and OUSAF44, OUSBT66 and
Memosens CPS61E, CLS82E, COS81E, CLS82E).Jezik:
češčina
Verzija:
06/09/2024
Velikost datoteke:
381.4 KB
Ime datoteke:
PU01584CEN_0124_cz_view.pdf
-
