Lastnosti na dlani
-
Measuring range
Application A
• pH: 1 to 12
Application B
• pH: 0 to 14
Application F
• pH: 0 to 10 -
Process temperature
Application A: –15 to 80 °C (5 to 176 °F)
Application B: 0 to 135 °C (32 to 275 °F)
Application F: 0 to 70 °C (32 to 158 °F) -
Process pressure
Applications A and B:
0.8 to 17 bar (11.6 to 246.5 psi) absolute
Application F:
0.8 to 7 bar (11.6 to 101.5 psi) absolute
Področje uporabe

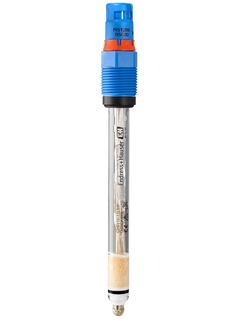

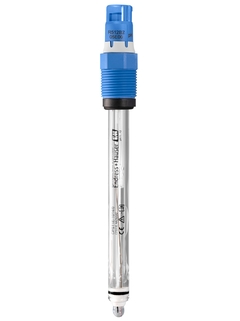

Memosens CPS11E is the digital all-rounder for stable processes. It measures reliably even in extreme pH ranges or hazardous areas. Thanks to Memosens 2.0 digital technology, the pH sensor resists moisture and enables lab calibration, increasing process safety and simplifying operation. Its extended storage of calibration and process data provides the perfect basis for predictive maintenance. Designed for a long operating life and low maintenance, Memosens CPS11E offers you best value for money.
Long-term monitoring and limit monitoring of processes with stable process conditions:
- Chemical industry
- Pulp & paper industry
- Power plants (e.g. flue gas washers, boiler feed water)
- Incineration plants
Water & wastewater treatment:
- Drinking water
- Cooling water
- Well water
- Wastewater treatment plants
With ATEX, IECEx, CSA C/US, NEPSI, Japan, INMETRO approvals for use in hazardous areas, zones 0, 1 and 2.
Prednosti
IIoT ready: Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.
Low operating costs: Lab calibration and quick sensor exchange in the process result in minimized process downtime and longer sensor lifetime.
Robust, low maintenance electrode: Long poison diffusion path or optimized ion trap prevent poisoning of the electrode reference. Large, dirt-repellent PTFE junction protects from soiling by the medium.
Process glass is suitable for the full pH range and pressure-stable up to 17 bar (246.5 psi) absolute. Optional F-glass allows application in media containing hydrofluoric acid such as etching baths in semiconductor production.
-
Improved optional salt storage ensures reliable measurement in low conductivity applications such as boiler feed water.
-
Maximum process integrity through non-contact, inductive signal transmission.
Videoposnetki
-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Specialni produkti
- Zasnovani za posebej zahtevne aplikacije
Tehnična odličnost
Preprostost
Spremenljivo
FLEX izbira | Tehnična odličnost | Preprostost |
---|---|---|
Segment Fundamental Zadostite svojim osnovnim merilnim potrebam |
Tehnična odličnost
|
Preprostost
|
Segment Lean Obvladajte ključne procese na preprost način |
Tehnična odličnost
|
Preprostost
|
Segment Extended Optimirajte procese z inovativnimi tehnologijami |
Tehnična odličnost
|
Preprostost
|
Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije |
Tehnična odličnost
|
Preprostost
Spremenljivo |
Segment Extended
-
Vrhunski produkti
- Visoko funkcionalni in praktični
Tehnična odličnost
Preprostost
Predhodnik
-
-
Tehnične informacije (TI)
TI Memosens CPS11E
pH sensor for standard applications in process technology and
environmental engineeringEN SL 14/10/202411/08/2020Jezik:
angleščina
Verzija:
14/10/2024
Velikost datoteke:
652.1 KB
Ime datoteke:
TI01493CEN_0224-00.pdf
-
-
-
Navodila za uporabo (BA)
pH senzorji CPSx1E, CPFx1E ORP senzorji CPSx2E, CPFx2E
Meritve pH in ORP
EN SL 14/10/202131/03/202115/03/202109/07/202019/05/2020Jezik:
slovenščina
Verzija:
14/10/2021
Velikost datoteke:
1 MB
Ime datoteke:
BA01988CSL_0421.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
pH and ORP measurement
Supplement to BA01988C, BA02142C
Safety instructions for electrical apparatus in explosion-hazardous
areas
UK Ex II 1 G Ex ia IIC T3/T4/T6 Ga
UK Ex II 1GEx ia IIC T4/T6 GaJezik:
angleščina
Verzija:
26/11/2021
Velikost datoteke:
684.7 KB
Ime datoteke:
XA02588CEN_0221-00.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
pH and ORP measurement
Supplement to BA01988C, BA02142C
Safety instructions for electrical apparatus in explosion-hazardous
areas
EAC Ex 0Ex ia IIC T3/T4/T6 Ga X
EAC Ex 0Ex ia IIC T4/T6 Ga XEN SL 26/01/2022Jezik:
angleščina
Verzija:
26/01/2022
Velikost datoteke:
424.3 KB
Ime datoteke:
XA02817CEN_0122-00.pdf
-
-
-
Ex varnostna navodila (XA)
Senzorji pH/ORP Memosens
Meritve pH in ORP
Varnostna navodila za električno opremo v eksplozijsko nevarnih območjihEN SL 23/04/202118/02/202103/07/2020Jezik:
slovenščina
Verzija:
23/04/2021
Velikost datoteke:
894.7 KB
Ime datoteke:
XA01991CSL_0321.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
pH and ORP measurement
Supplement to: BA01988C, BA02142C
Safety instructions for electrical apparatus in explosion-hazardous
areas
NEPSI Ex ia IIC T3/T4/T6 Ga
NEPSI Ex ia IIC T4/T6 GaEN SL 07/09/202105/08/2020Jezik:
angleščina
Verzija:
07/09/2021
Velikost datoteke:
529.3 KB
Ime datoteke:
XA02113CEN_0221.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
pH and ORP measurement
Safety instructions for electrical apparatus in explosion-hazardous
areasEN SL 22/04/202115/10/2020Jezik:
angleščina
Verzija:
22/04/2021
Velikost datoteke:
491.8 KB
Ime datoteke:
XA02244CEN_0221.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
pH and ORP measurement
Supplement to BA01988C, BA02142C
Safety instructions for electrical apparatus in explosion-hazardous
areas
KOR Ex ia IIC T3/T4/T6 Ga
KOR Ex ia IIC T4/T6 GaEN SL 22/10/2021Jezik:
angleščina
Verzija:
22/10/2021
Velikost datoteke:
425.6 KB
Ime datoteke:
XA02739CEN_0121.pdf
-
-
-
Ex varnostna navodila (XA)
XA Memosens pH/ORP sensors
pH and ORP measurement
Safety instructions for electrical apparatus in explosion-hazardous
areasEN SL 26/08/2024Jezik:
angleščina
Verzija:
26/08/2024
Velikost datoteke:
503.6 KB
Ime datoteke:
XA03347CEN_0124-00.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
pH and ORP measurement
Safety instructions for electrical apparatus in explosion-hazardous
areasEN SL 22/04/202131/07/2020Jezik:
angleščina
Verzija:
22/04/2021
Velikost datoteke:
505.2 KB
Ime datoteke:
XA02082CEN_0221.pdf
-
