Lastnosti na dlani
-
Measuring range
ORP: –1 500 … 1 500 mV
Application: A
• pH: 1 to 12
Application B
• pH: 0 to 14 -
Process temperature
Application A: –15 to 80 °C (5 to 176 °F)
Application B: 0 to 135 °C (32 to 275 °F) -
Process pressure
0.8 to 17 bar (11.6 to 246,5 psi) absolute
Področje uporabe

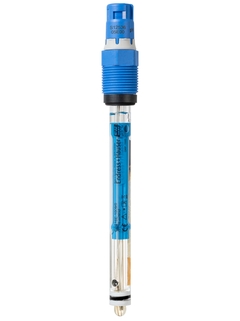

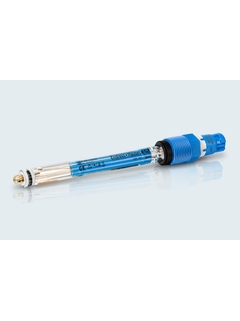

Memosens CPS16E is suitable for simultaneous pH and ORP measurement in applications with long-term stable conditions. Thanks to its pH and ORP elements, the sensor offers a better process overview and enables tighter process control. Memosens CPS16E features Memosens 2.0 digital technology, offering extended data storage for predictive maintenance. The pH/ORP sensor resists moisture and enables lab calibration which makes the operator's daily tasks easier and maximizes process integrity.
Long-term monitoring or limit control in processes with stable process conditions:
- Chemical processes
- Pulp and paper industry
- Power stations (e.g. flue gas cleaning)
- Incinerator plants
- Mining
- WastewaterWater treatment:
- Drinking water
- Cooling water
- Well water
With ATEX, IECEx, CSA C/US, NEPSI, Japan, INMETRO approvals for use in hazardous areas, zones 0, 1 and 2.
Prednosti
Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.
The additional platinum electrode enables constant monitoring of reference impedance and is a reliable indicator of the sensor quality.
Simultaneous measurement of pH, ORP and rH values (in rH mode) offers a better process overview and allows for a tighter process control.
Robust: Large PTFE ring junction and reference with ion trap prevent poisoning of the sensor.
Suitable for harsh applications: Process glass for highly alkaline media and pressure-stable up to 17 bar (246 psi).
Reduced operating costs: Lab calibration and fast sensor exchange on site minimize process downtime. Sensor regeneration in the laboratory extends the sensor lifetime.
-
Non-contact, digital signal transmission ensures reliable measurements resulting in maximum process safety.
Videoposnetki
Segment Extended
-
Vrhunski produkti
- Visoko funkcionalni in praktični
Tehnična odličnost
Preprostost
-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Specialni produkti
- Zasnovani za posebej zahtevne aplikacije
Tehnična odličnost
Preprostost
Spremenljivo
FLEX izbira | Tehnična odličnost | Preprostost |
---|---|---|
Segment Fundamental Zadostite svojim osnovnim merilnim potrebam |
Tehnična odličnost
|
Preprostost
|
Segment Lean Obvladajte ključne procese na preprost način |
Tehnična odličnost
|
Preprostost
|
Segment Extended Optimirajte procese z inovativnimi tehnologijami |
Tehnična odličnost
|
Preprostost
|
Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije |
Tehnična odličnost
|
Preprostost
Spremenljivo |
Predhodnik
-
-
Tehnične informacije (TI)
Memosens CPS16E
pH/ORP sensor for standard applications in process technology and
environmental engineeringEN SL 27/07/2021Jezik:
angleščina
Verzija:
27/07/2021
Velikost datoteke:
1.1 MB
Ime datoteke:
TI01600CEN_0121.pdf
-
-
-
Navodila za uporabo (BA)
Kombinirani senzorji pH/ORP CPS16E, CPS76E in CPS96E
Meritve pH in ORP
EN SL 14/10/202130/07/2021Jezik:
slovenščina
Verzija:
14/10/2021
Velikost datoteke:
755.5 KB
Ime datoteke:
BA02142CSL_0221.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
pH and ORP measurement
Supplement to BA01988C, BA02142C
Safety instructions for electrical apparatus in explosion-hazardous
areas
UK Ex II 1 G Ex ia IIC T3/T4/T6 Ga
UK Ex II 1GEx ia IIC T4/T6 GaJezik:
angleščina
Verzija:
26/11/2021
Velikost datoteke:
684.7 KB
Ime datoteke:
XA02588CEN_0221-00.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
pH and ORP measurement
Supplement to BA01988C, BA02142C
Safety instructions for electrical apparatus in explosion-hazardous
areas
EAC Ex 0Ex ia IIC T3/T4/T6 Ga X
EAC Ex 0Ex ia IIC T4/T6 Ga XEN SL 26/01/2022Jezik:
angleščina
Verzija:
26/01/2022
Velikost datoteke:
424.3 KB
Ime datoteke:
XA02817CEN_0122-00.pdf
-
-
-
Ex varnostna navodila (XA)
Senzorji pH/ORP Memosens
Meritve pH in ORP
Varnostna navodila za električno opremo v eksplozijsko nevarnih območjihEN SL 23/04/202118/02/202103/07/2020Jezik:
slovenščina
Verzija:
23/04/2021
Velikost datoteke:
894.7 KB
Ime datoteke:
XA01991CSL_0321.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
pH and ORP measurement
Supplement to: BA01988C, BA02142C
Safety instructions for electrical apparatus in explosion-hazardous
areas
NEPSI Ex ia IIC T3/T4/T6 Ga
NEPSI Ex ia IIC T4/T6 GaEN SL 07/09/202105/08/2020Jezik:
angleščina
Verzija:
07/09/2021
Velikost datoteke:
529.3 KB
Ime datoteke:
XA02113CEN_0221.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
pH and ORP measurement
Safety instructions for electrical apparatus in explosion-hazardous
areasEN SL 22/04/202115/10/2020Jezik:
angleščina
Verzija:
22/04/2021
Velikost datoteke:
491.8 KB
Ime datoteke:
XA02244CEN_0221.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
pH and ORP measurement
Supplement to BA01988C, BA02142C
Safety instructions for electrical apparatus in explosion-hazardous
areas
KOR Ex ia IIC T3/T4/T6 Ga
KOR Ex ia IIC T4/T6 GaEN SL 22/10/2021Jezik:
angleščina
Verzija:
22/10/2021
Velikost datoteke:
425.6 KB
Ime datoteke:
XA02739CEN_0121.pdf
-
-
-
Ex varnostna navodila (XA)
XA Memosens pH/ORP sensors
pH and ORP measurement
Safety instructions for electrical apparatus in explosion-hazardous
areasEN SL 26/08/2024Jezik:
angleščina
Verzija:
26/08/2024
Velikost datoteke:
503.6 KB
Ime datoteke:
XA03347CEN_0124-00.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
pH and ORP measurement
Safety instructions for electrical apparatus in explosion-hazardous
areasEN SL 22/04/202131/07/2020Jezik:
angleščina
Verzija:
22/04/2021
Velikost datoteke:
505.2 KB
Ime datoteke:
XA02082CEN_0221.pdf
-
