Lastnosti na dlani
-
Measuring range
-1500 mV to +1500 mV
-
Process temperature
-15 to 135 °C
(5 to 275 °F) -
Process pressure
0.8 to 17 bar (11.6 to 246.5 psi) absolute
Področje uporabe
Memosens CPS12E is the digital all-round ORP sensor. It measures reliably even in harsh applications or hazardous areas. Designed for low maintenance and a long operating life, the ORP sensor offers you best value for money. Memosens CPS12E features Memosens 2.0 digital technology that provides the perfect basis for predictive maintenance thanks to extended storage of calibration and process data. The plug & play principle of Memosens allows for easy operation and more process uptime.
Long-term monitoring and limit monitoring of processes with stable process conditions:
- Chemical industry
- Pulp & paper industry
- Power plants
- Incineration plants
Water & wastewater treatment:
- Drinking water
- Cooling water
- Well water
- Wastewater treatment plants
With ATEX, IECEx, CSA C/US, NEPSI, Japan, INMETRO approvals for use in hazardous areas, zones 0, 1 and 2.
Prednosti
Robust, low maintenance ORP sensor: Large, dirt-repellent PTFE junction protects from soiling by the medium. Long poison diffusion path prevents poisoning of the electrode reference.

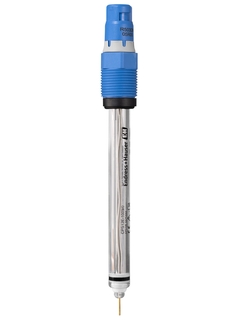

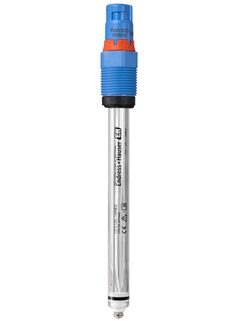

Suitable for harsh applications: Gold pin or platinum cap cover the full range of oxidizing or reducing media. Shaft glass ensures high chemical stability. The sensor is pressure stable up to 17 bar (246.5 psi) absolute.
Memosens 2.0 technology enables the sensor to store more process and calibration data. It lays the basis for IIoT services and predictive maintenance.
-
Extremely reliable measurement with to non-contact, inductive signal transmission results in increased process safety.
Lab calibration and fast sensor replacement on site allow for minimized process downtimes, reducing operating costs.
Videoposnetki
Segment Extended
-
Vrhunski produkti
- Visoko funkcionalni in praktični
Tehnična odličnost
Preprostost
-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Specialni produkti
- Zasnovani za posebej zahtevne aplikacije
Tehnična odličnost
Preprostost
Spremenljivo
FLEX izbira | Tehnična odličnost | Preprostost |
---|---|---|
Segment Fundamental Zadostite svojim osnovnim merilnim potrebam |
Tehnična odličnost
|
Preprostost
|
Segment Lean Obvladajte ključne procese na preprost način |
Tehnična odličnost
|
Preprostost
|
Segment Extended Optimirajte procese z inovativnimi tehnologijami |
Tehnična odličnost
|
Preprostost
|
Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije |
Tehnična odličnost
|
Preprostost
Spremenljivo |
Predhodnik
-
-
Tehnične informacije (TI)
Memosens CPS12E
ORP sensor for standard applications in process technology and
environmental engineeringEN SL 11/08/2020Jezik:
angleščina
Verzija:
11/08/2020
Velikost datoteke:
682.3 KB
Ime datoteke:
TI01494CEN_0120.pdf
-
-
-
Navodila za uporabo (BA)
pH senzorji CPSx1E, CPFx1E ORP senzorji CPSx2E, CPFx2E
Meritve pH in ORP
EN SL 14/10/202131/03/202115/03/202109/07/202019/05/2020Jezik:
slovenščina
Verzija:
14/10/2021
Velikost datoteke:
1 MB
Ime datoteke:
BA01988CSL_0421.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
pH and ORP measurement
Supplement to BA01988C, BA02142C
Safety instructions for electrical apparatus in explosion-hazardous
areas
UK Ex II 1 G Ex ia IIC T3/T4/T6 Ga
UK Ex II 1GEx ia IIC T4/T6 GaJezik:
angleščina
Verzija:
26/11/2021
Velikost datoteke:
684.7 KB
Ime datoteke:
XA02588CEN_0221-00.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
pH and ORP measurement
Supplement to BA01988C, BA02142C
Safety instructions for electrical apparatus in explosion-hazardous
areas
EAC Ex 0Ex ia IIC T3/T4/T6 Ga X
EAC Ex 0Ex ia IIC T4/T6 Ga XEN SL 26/01/2022Jezik:
angleščina
Verzija:
26/01/2022
Velikost datoteke:
424.3 KB
Ime datoteke:
XA02817CEN_0122-00.pdf
-
-
-
Ex varnostna navodila (XA)
Senzorji pH/ORP Memosens
Meritve pH in ORP
Varnostna navodila za električno opremo v eksplozijsko nevarnih območjihEN SL 23/04/202118/02/202103/07/2020Jezik:
slovenščina
Verzija:
23/04/2021
Velikost datoteke:
894.7 KB
Ime datoteke:
XA01991CSL_0321.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
pH and ORP measurement
Supplement to: BA01988C, BA02142C
Safety instructions for electrical apparatus in explosion-hazardous
areas
NEPSI Ex ia IIC T3/T4/T6 Ga
NEPSI Ex ia IIC T4/T6 GaEN SL 07/09/202105/08/2020Jezik:
angleščina
Verzija:
07/09/2021
Velikost datoteke:
529.3 KB
Ime datoteke:
XA02113CEN_0221.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
pH and ORP measurement
Safety instructions for electrical apparatus in explosion-hazardous
areasEN SL 22/04/202115/10/2020Jezik:
angleščina
Verzija:
22/04/2021
Velikost datoteke:
491.8 KB
Ime datoteke:
XA02244CEN_0221.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
pH and ORP measurement
Supplement to BA01988C, BA02142C
Safety instructions for electrical apparatus in explosion-hazardous
areas
KOR Ex ia IIC T3/T4/T6 Ga
KOR Ex ia IIC T4/T6 GaEN SL 22/10/2021Jezik:
angleščina
Verzija:
22/10/2021
Velikost datoteke:
425.6 KB
Ime datoteke:
XA02739CEN_0121.pdf
-
-
-
Ex varnostna navodila (XA)
XA Memosens pH/ORP sensors
pH and ORP measurement
Safety instructions for electrical apparatus in explosion-hazardous
areasEN SL 26/08/2024Jezik:
angleščina
Verzija:
26/08/2024
Velikost datoteke:
503.6 KB
Ime datoteke:
XA03347CEN_0124-00.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
pH and ORP measurement
Safety instructions for electrical apparatus in explosion-hazardous
areasEN SL 22/04/202131/07/2020Jezik:
angleščina
Verzija:
22/04/2021
Velikost datoteke:
505.2 KB
Ime datoteke:
XA02082CEN_0221.pdf
-
