Lastnosti na dlani
-
Process temperature
Any
-
Process pressure / max. overpressure limit
Any
-
Main wetted parts
Non-contact
Področje uporabe

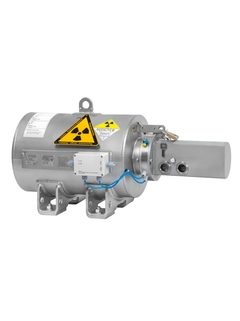

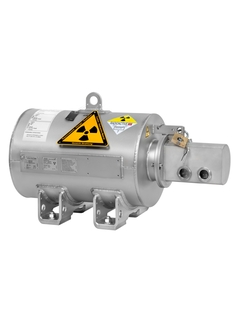

The FQG66 source container is designed to hold the radioactive source with highest activities during radiometric point level detection, continuous level and density measurement. The radiation is emitted almost unattenuated in one direction only, and is damped in all other directions. This guarantees highest safety for the personnel and a reliable measurement.
Encloses the radioactive source used for radiometric point level detection, level and density measurement. Operating with very high sensitivity rod scintillation detectors, provide lowest possible radiation loads in the surrounding.
Used if the shielding effectiveness of smaller source containers (FQG61/62) are too low
Activity: 137Cs 740GBq (20,000mCi), 60Co to 185GBq (5,000mCi)
Process temperature: No limitation (extraneous)
Process pressure: No limitation (extraneous)
Prednosti
High safety level thanks to highest safety classification for the source supplied
(DIN 25426/ISO 2919, typically classification C66646) and simple and easy source replacementExtremely high shielding ensures that no control areas are generally required and that installation in accessed areas is possible
Additional metallic protective capsule with O-ring seal to protect the source against mechanical and chemical influences
Low space requirement and simple mounting and various angles of emission for optimum adaption to the application
Padlock for fixation the on/off switch position and to protect against theft
Easy identification of switch status through sight glasses on the cover or by remote display with proximity switches
Videoposnetki
Segment Xpert
-
Specialni produkti
- Zasnovani za posebej zahtevne aplikacije
Tehnična odličnost
Preprostost
Spremenljivo
-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Specialni produkti
- Zasnovani za posebej zahtevne aplikacije
Tehnična odličnost
Preprostost
Spremenljivo
| FLEX izbira | Tehnična odličnost | Preprostost |
|---|---|---|
Segment Fundamental Zadostite svojim osnovnim merilnim potrebam |
Tehnična odličnost
|
Preprostost
|
Segment Lean Obvladajte ključne procese na preprost način |
Tehnična odličnost
|
Preprostost
|
Segment Extended Optimirajte procese z inovativnimi tehnologijami |
Tehnična odličnost
|
Preprostost
|
Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije |
Tehnična odličnost
|
Preprostost
Spremenljivo |
Loading alternative products
Predhodnik
Zgodbe o uspehu
Dokumenti 29
-
-
Tehnične informacije (TI)
Source container FQG66
Radiometric level measurement
EN SL 19/06/202028/02/201925/09/2015Jezik:
angleščina
Verzija:
19/06/2020
Velikost datoteke:
2.4 MB
Ime datoteke:
TI01171FEN_0320.pdf
-
-
-
Navodila za uporabo (BA)
Vsebnik vira FQG66
Radiometrične meritve nivoja
EN SL 19/06/202025/09/2015Jezik:
slovenščina
Verzija:
19/06/2020
Velikost datoteke:
3.5 MB
Ime datoteke:
BA01327FSL_0220.pdf
-
-
-
Navodila za vgradnjo (EA)
Proximity switch Installation Instruction
Source container FQG61, FQG62,FQG66
EN SL 26/11/2015Jezik:
angleščina
Verzija:
26/11/2015
Velikost datoteke:
1.6 MB
Ime datoteke:
EA01139FA2_0115.pdf
-
-
-
Navodila za vgradnjo (EA)
Source holder and gasket set Installation Instruction
Source container FQG66
EN SL 26/11/2015Jezik:
angleščina
Verzija:
26/11/2015
Velikost datoteke:
435.7 KB
Ime datoteke:
EA01138FA2_0115.pdf
-
-
-
Navodila za vgradnjo (EA)
Ball locking bolt Installation instruction
Source container FQG66
EN SL 02/09/2016Jezik:
angleščina
Verzija:
02/09/2016
Velikost datoteke:
625.6 KB
Ime datoteke:
EA01182FA2_0116.pdf
-
-
-
Navodila za vgradnjo (EA)
Sight glass and vent screw Installation Instruction
Source container FQG66
EN SL 26/11/2015Jezik:
angleščina
Verzija:
26/11/2015
Velikost datoteke:
361.8 KB
Ime datoteke:
EA01141FA2_0115.pdf
-
-
-
Navodila za vgradnjo (EA)
O-ring cap Installation Instruction
Source container FQG66
EN SL 26/11/2015Jezik:
angleščina
Verzija:
26/11/2015
Velikost datoteke:
508.6 KB
Ime datoteke:
EA01137FA2_0115.pdf
-
-
-
Navodila za vgradnjo (EA)
Terminal box
Source container FQG61, FQG62, FQG66
EN SL 12/11/202102/10/201931/07/201826/11/2015Jezik:
angleščina
Verzija:
12/11/2021
Velikost datoteke:
680.4 KB
Ime datoteke:
EA01142FA2_0421.pdf
-
-
-
Navodila za vgradnjo (EA)
Slide bearing set Installation Instruction
Source container FQG66
EN SL 26/11/2015Jezik:
angleščina
Verzija:
26/11/2015
Velikost datoteke:
815.1 KB
Ime datoteke:
EA01140FA2_0115.pdf
-
-
-
ZE (certifikat)
RFID TAG Certificate/Declaration of Conformity
ATEX:
II 2 G Ex ia IIC T6 Gb
II 2 D Ex ia IIIC T80°C Db;
IECEx:
Ex ia IIC T6 Gb
Ex ia IIIC T80°C Db
IECEx EPS 15.0042X; EPS 15 ATEX 1 1011 XEN SL 08/02/201920/06/201607/09/201520/08/2015Jezik:
angleščina
Verzija:
08/02/2019
Velikost datoteke:
6.1 MB
Ime datoteke:
ZE01020FA2_0418.pdf
-
Iskanje nadomestnih delov po številki iz risbe
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
O-ring cap FQG66, FVMQ
-
Sealing
Številka risbeKataloška koda2171301286 -
-
Slide bearing set FQG66
-
Miscellaneous
Številka risbeKataloška koda5271301296 -
-
Ball locking bolt FQG66, VA
-
Housing/housing accessories
Številka risbeKataloška koda5371341171 -
-
Sight glass on Shutter, with seal
-
Miscellaneous
Številka risbeKataloška koda2471301299 -
-
Padlock FQG6x
-
Housing/housing accessories
Številka risbeKataloška koda2271301302 -
-
Ventilation screw FQG66, VA, 1piece
-
Filter
Številka risbeKataloška koda2371301303 -
-
Proximity switch FQG61/FQG62/FQG66
-
Electro mechanic
Številka risbeKataloška koda3371099277 -
-
Terminal box FQG66
-
Electro mechanic
Številka risbeKataloška koda3171301298 -
-
Label "caution radiation" _SS
Kataloška koda916497-0000
