Lastnosti na dlani
-
Process temperature
Any
-
Process pressure / max. overpressure limit
Any
-
Main wetted parts
Non-contact
Področje uporabe

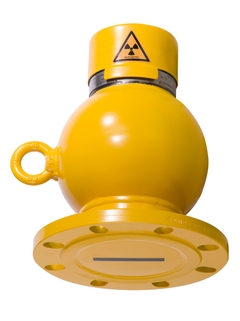

The FQG61 source container is designed to hold the radioactive source during radiometric point level detection, continuous level and density measurement. The radiation is emitted almost unattenuated in one direction only, and is damped in all other directions. This guarantees highest safety for the personnel and a reliable measurement.
Designed to hold the radioactive source during radiometric point level detection, continuous level measurement and density measurement. Radiation is emitted almost unattenuated in one direction only and is damped in all other directions.
Activity: 137Cs to 18.5GBq (500mCi), 60Co to 0.74GBq (20mCi)
Temperature: No limitation (non-invasive, extraneous)
Pressure: No limitation (non-invasive, extraneous)
Prednosti
High safety level thanks to highest classification for the source supplied (DIN 25426/ISO 2919, typically classification C66646) and safe and easy source replacement
Reliable measurement due to lightweight container and almost spherical design which provides optimized screening
Compact, easy-to-mount device with the possibility of various angles of emission for optimum adaptation to the application

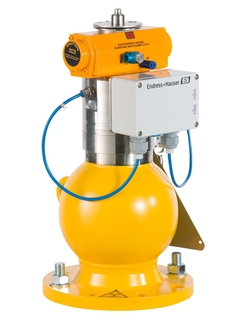

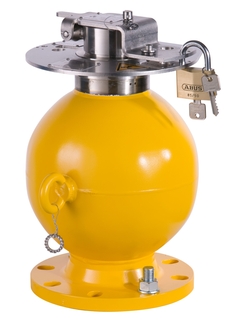

Manual or pneumatic switching on/off and padlock, cylinder lock or locking bolt for fixing the switching position
Switch status easily identified
