Micropilot FMR57

The standard sensor for highest demands in bulk solids level measurement

FMR57

Primerjava

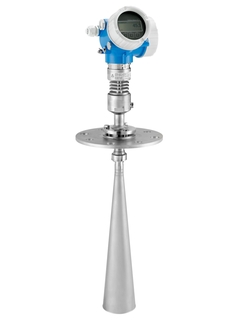

Micropilot FMR57 aluminum housing with horn antenna

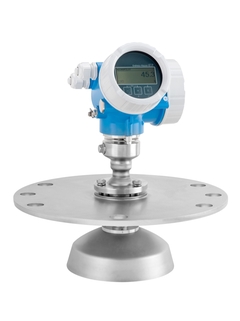

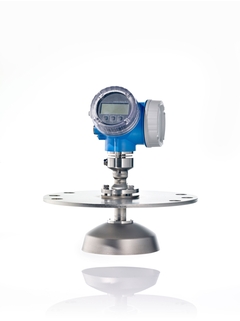

Micropilot FMR57 aluminum housing with parabol antenna

Lastnosti na dlani

Accuracy

+/- 3 mm (0.12 in)
Process temperature

-40...+400 °C
(-40...+752 °F)
Process pressure / max. overpressure limit

Vacuum...16 bar
(Vacuum...232 psi)
Max. measurement distance

70 m (230 ft)
Main wetted parts

316L, PEEK, PTFE, Polyamid

Vse specifikacije

Področje uporabe

Micropilot FMR57 is the sensor for the highest demands in bulk solids and best suited for measurements in high silos, bunkers or stockpiles. The parabolic antenna facilitates very small emitting angles and thus the measurement in slim silos. Micropilot free space radar is used for continuous, non-contact level measurement in powdery to granular bulk solids. Dust, filling noises, temperature layers and gas layers do not affect the measurement.

Horn or parabolic antenna. Thanks to the additional air purge connection even strongly dusting and build-up forming media do not present any problem.

Process connections: Thread or flange
Temperature: -40 to +400°C (–40 to 752°F)
Pressure: -1 to +16bar (-14.5 to +232psi)
Maximum measuring range: 70m (230ft)
K-band: 26GHz
International explosion protection certificates, SIL, 5-point linearity protocol

Prednosti

Hardware and software developed according to IEC 61508 up to SIL3 (in homogeneous redundancy)
HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
Highest reliability even in the presence of obstructions in the vessel due to new Multi-Echo Tracking evaluation
Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle
Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)
Reliable measurement even for changing product and process conditions
World's easiest proof test concept for SIL and WHG saves time and cost

Videoposnetki

Time-of-Flight measuring principle
Commissioning movie for Micropilot FMR5x free space radar and Levelflex FMP5x guided radar
Unique HistoROM data management concept for safe level measurement
Continuous adapting algorithms offering safe level measurement due to Multi-Echo Tracking
Micropilot with Advanced Dynamics offering more reliable measuring signals even in the case of turbulences
Micropilot FMR57 with Advanced Diagnostic functions offers build-up detection

Segment Extended
