Lastnosti na dlani
-
Accuracy
+/- 2mm (0.08")
-
Process temperature
-40…+80°C
(-40…+176°F) -
Process pressure / max. overpressure limit
-1…3 bar
(-14,5…43 psi) -
Max. measurement distance
30m (98.4 ft)
-
Main wetted parts
PVDF, PBT
Področje uporabe

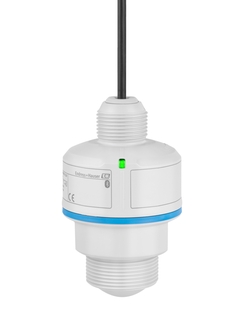

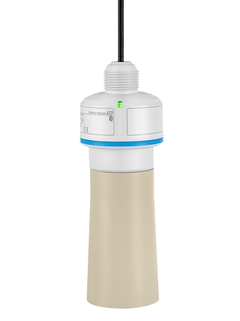

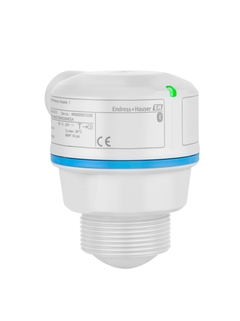

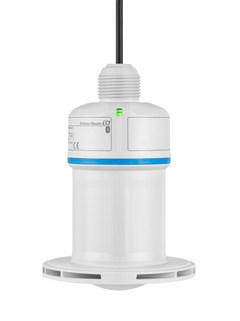

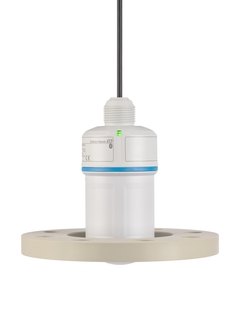

The Micropilot FMR20B offers continuous non-contact level measurement with 80 GHz technology. Guiding wizards enable easy handling for installation, commissioning and operation. Efficiency through reduced downtime can be realized with on-demand process verification and device diagnostics, thanks to Heartbeat Technology. The compact design of the device also allows use in narrow installation conditions.
The Micropilot FMR20B is a free space radar device with a measuring range of up to 30m (98ft) for liquid and solid applications in the Water & Wastewater, Mining, Minerals & Metals and Food & Beverage industries, as well as for utility applications across all industries:
Open baisins
River monitoring
Sewer management
Pump station / lift station
Open channel flow
IBC and storage tanks
Silos
Stockpiles
Pneumatic conveying
Prednosti
Fast commissioning and operation thanks to guided setup sequences (wizards)
Bluetooth connectivity enables easy, reliable and encrypted wireless remote access
Device identification during Bluetooth connection thanks to “It’s me-function” (LED flashing) and status indication via LED
Simple device selection thanks to clear segmentation and easy configuration
Heartbeat Technology allows on-demand verification and diagnostics guided through the wizard without process interruption
Videoposnetki
Segment Lean
-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Specialni produkti
- Zasnovani za posebej zahtevne aplikacije
Tehnična odličnost
Preprostost
Spremenljivo
| FLEX izbira | Tehnična odličnost | Preprostost |
|---|---|---|
Segment Fundamental Zadostite svojim osnovnim merilnim potrebam |
Tehnična odličnost
|
Preprostost
|
Segment Lean Obvladajte ključne procese na preprost način |
Tehnična odličnost
|
Preprostost
|
Segment Extended Optimirajte procese z inovativnimi tehnologijami |
Tehnična odličnost
|
Preprostost
|
Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije |
Tehnična odličnost
|
Preprostost
Spremenljivo |
Loading alternative products
Zgodbe o uspehu
Dokumenti 18
-
-
Tehnične informacije (TI)
TI Micropilot FMR20B
Free-space radar
HARTEN SL 25/09/2024Jezik:
angleščina
Verzija:
25/09/2024
Velikost datoteke:
2.4 MB
Ime datoteke:
TI01796FEN_0224-00.pdf
-
-
-
Navodila za uporabo (BA)
BA Micropilot FMR20B
Free-space radar
HARTEN SL 25/09/2024Jezik:
angleščina
Verzija:
25/09/2024
Velikost datoteke:
2.6 MB
Ime datoteke:
BA02364FEN_0224-00.pdf
-
-
-
Kratka navodila (KA)
KA Micropilot FMR20B
Radar
HARTEN SL 25/09/2024Jezik:
slovenščina
Verzija:
25/09/2024
Velikost datoteke:
1.2 MB
Ime datoteke:
KA01723FSL_0124-00.pdf
-
-
-
Posebna dokumentacija (SD)
SD Micropilot FMR10B, FMR20B, FMR30B
Free-space radar
EN SL 17/09/2024Jezik:
angleščina
Verzija:
17/09/2024
Velikost datoteke:
246.7 KB
Ime datoteke:
SD03324FEN_0124-00.pdf
-
-
-
Posebna dokumentacija (SD)
SD Micropilot FMR20B, FMR30B
Application package
Heartbeat Verification
HARTEN SL 25/09/2024Jezik:
angleščina
Verzija:
25/09/2024
Velikost datoteke:
451.2 KB
Ime datoteke:
SD03301FEN_0124-00.pdf
-
-
-
Inovacija (IN)
Je einfacher, desto besser.
Die Messgeräte für einen sorgenfreien Einsatz.
Jezik:
nemščina
Verzija:
26/09/2024
Velikost datoteke:
5.9 MB
Ime datoteke:
Micropilot-FMR10B-FMR20B-FMR30B_IN01344F00DE_eBrochure_long-version.pdf
-
-
-
Inovacija (IN)
Je einfacher, desto besser.
Die Messgeräte für einen sorgenfreien Einsatz.
Short version.Jezik:
nemščina
Verzija:
26/09/2024
Velikost datoteke:
1.8 MB
Ime datoteke:
Micropilot-FMR10B-FMR20B-FMR30B_IN01345F00DE_eBrochure_short-version.pdf
-
-
-
Inovacija (IN)
The simpler, the better. The measuring devices for anyone who wants more of worrying less.
The simpler, the better.
The measuring devices for anyone who wants more of worrying less.Jezik:
angleščina
Verzija:
29/08/2024
Velikost datoteke:
13.4 MB
Ime datoteke:
Micropilot-FMR10B-FMR20B-FMR30B_IN01344F00EN_eBrochure_long-version.pdf
-
-
-
Izjava proizvajalca
Product family: Micropilot
Product root: FMR10B-, FMR20B-, FMR30B-
Declaration number: HE_01997_01.24
Manufacturer specification: RoHS
Additional information: China RoHSEN SL 19/09/2024Jezik:
angleščina
Verzija:
19/09/2024
Velikost datoteke:
262.3 KB
Ime datoteke:
HE_01997_01.24.pdf
-
-
-
Izjava EU
Product family: Micropilot
Product root: FMR10B-, FMR20B-, FMR30B-
Declaration number: EU_01219_01.24Jezik:
angleščina
Verzija:
24/09/2024
Velikost datoteke:
1 MB
Ime datoteke:
EU_01219_01.24.pdf
-
