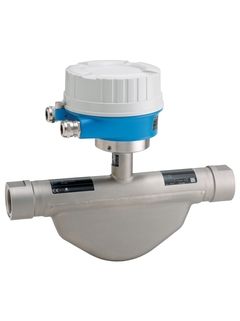

Picture of Promass G 100 / 8G1B for measurement of liquids and gases in high-pressure applications

Proline Promass G 100
Coriolis flowmeter

The most compact high-pressure sensor with an ultra-compact transmitter

8G1B
Nalaganje cene
Cene trenutno niso na voljo
Price on request
from CHF ??.-

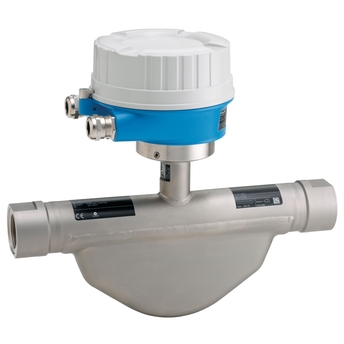

Picture of Promass G 100 / 8G1B for measurement of liquids and gases in high-pressure applications
  • F
  • L
  • E
  • X
©Endress+Hauser

Proline Promass G 100 for measurement of liquids and gases in high-pressure applications

Proline Promass G 100 for measurement of liquids and gases in high-pressure applications

Heartbeat Technology

Lastnosti na dlani

  • Max. measurement error

    Mass flow (liquid): ±0.15 %
    Volume flow (liquid): ±0.15 %
    Mass flow (gas): ±0.75 %
    Density (liquid): ±0.0005 g/cm³

  • Measuring range

    0 to 18 000 kg/h (0 to 662 lb/min)

  • Medium temperature range

    –50 to +150 °C (–58 to +302 °F)

  • Max. process pressure

    350 bar (5080 psi)

  • Wetted materials

    Measuring tube: 1.4435 (316L)
    Connection: 1.4404 (316/316L)

Področje uporabe

Promass G provides safe and accurate measurement of liquids and gases in high pressure applications up to 350 bar (5080 psi). Rupture disc and threaded process connections provide easy and safe integration. Combined with the smallest transmitter housing available today it delivers full performance on the smallest footprint. Designed for applications where space is a premium, Promass G 100 will be the preferred choice for system integrators, skid builders and equipment manufacturers.

  • Measuring principle operates independently of physical fluid properties such as viscosity or density

  • Accurate measurement of liquids and gases in high-pressure applications.

Device properties

  • Internal threads as process connection

  • Process pressure up to 350 bar (5080 psi)

  • Rupture disc available

  • Robust, ultra-compact transmitter housing

  • Pre‐configured plug connector

  • Local display available

Prednosti

  • Easy and safe process integration – threaded connections

  • Fewer process measuring points – multivariable measurement (flow, density, temperature)

  • Space-saving installation – no in/outlet run needs

  • Space-saving transmitter – full functionality on the smallest footprint

  • Time-saving local operation without additional software and hardware – integrated web server

  • Integrated verification – Heartbeat Technology

Videoposnetki

  • The Coriolis Flow Measuring Principle

  • Introduction of Proline Web server

  • Heartbeat Technology
    Smart instrumentation through Heartbeat Technology

    You want to increase plant performance and reduce costs? Our smart instrumentation portfolio with Heartbeat Technology offers in-depth device insight for more cost-efficiency and operational safety.
