Lastnosti na dlani
-
Max. measurement error
2% - 10% (per measurement range)
-
Measuring range
1"...40"
-
Medium temperature range
-20...+85°C
(-4...+185°F)
CIP able to 130°C / 266°F -
Max. process pressure
100 bar (1.740 psi)
Področje uporabe
The switch is designed for the safe monitoring and display of relative mass flow rates of liquid media in hygienic applications, for example the monitoring of cooling water circulation systems and filter monitoring in the beverage industry. It can be selected between one or two switch outputs as well as one switch output and one standardized analog output for flow rates or temperature values. A variety of hygienic process connections leads to a flexible use.

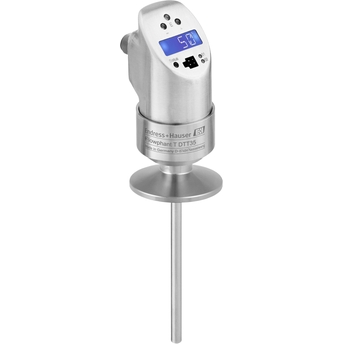

Flow switch for monitoring and displaying relative mass flow rates of liquid media in the range from 0.03 to 3 m/s (0.1 to 9.84 ft/s). Flowphant T DTT35 − with process connections for hygienic applications.
Application examples:
Monitoring cooling water circulation systems of pumps, turbines, compressors and heat exchangers
Leak monitoring in process lines
Monitoring pump functionality
Monitoring lubrication systems
Filter monitoring in the beverage industry
Prednosti
Practically no pressure loss
Configuration software FieldCare for quick configuration and reliable storage of device settings

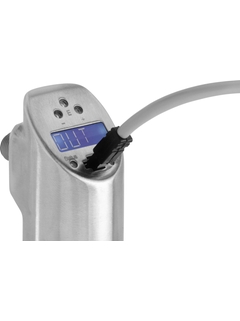

Optional: second switch output or 4 to 20 mA analog output for temperature monitoring or for outputting the flow as a percentage

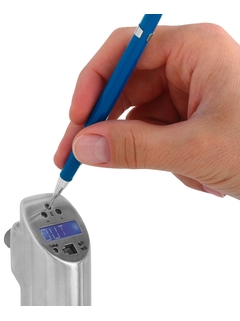

Function check and process information onsite thanks to digital display at device
Top housing section which can be rotated 310° and rotatable display make it possible to read the measured values in all orientations
3-A approval
Segment Fundamental
-
Enostavni produkti
- Lahka izbira, vgradnja in uporaba
Tehnična odličnost
Preprostost
-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Specialni produkti
- Zasnovani za posebej zahtevne aplikacije
Tehnična odličnost
Preprostost
Spremenljivo
| FLEX izbira | Tehnična odličnost | Preprostost |
|---|---|---|
Segment Fundamental Zadostite svojim osnovnim merilnim potrebam |
Tehnična odličnost
|
Preprostost
|
Segment Lean Obvladajte ključne procese na preprost način |
Tehnična odličnost
|
Preprostost
|
Segment Extended Optimirajte procese z inovativnimi tehnologijami |
Tehnična odličnost
|
Preprostost
|
Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije |
Tehnična odličnost
|
Preprostost
Spremenljivo |
Loading alternative products
Zgodbe o uspehu
%20-%20CS01637X.jpg "Picture of the water reservoir Marbach (Germany)")
-
-
Tehnične informacije (TI)
TI Weld-in adapter, process adapter and flanges
Level, pressure and temperature measurement
EN SL 25/03/202415/09/202328/10/202130/07/202119/06/2020Jezik:
angleščina
Verzija:
25/03/2024
Velikost datoteke:
1.1 MB
Ime datoteke:
TI00426FEN_2524.pdf
-
-
-
Tehnične informacije (TI)
Flowphant T DTT31, DTT35
Flow switch for the safe and reliable monitoringof mass flow rates and
temperature in industrial processesEN SL 30/11/202015/02/201809/04/201416/08/201110/06/2009Jezik:
angleščina
Verzija:
30/11/2020
Velikost datoteke:
1.1 MB
Ime datoteke:
TI00125REN_0420.pdf
-
-
-
Navodila za uporabo (BA)
Flowphant T DTT31, DTT35
Pretočno stikalo
EN SL 30/11/202015/02/201802/04/201416/01/201404/07/2013Jezik:
slovenščina
Verzija:
30/11/2020
Velikost datoteke:
1.1 MB
Ime datoteke:
BA00235RSL_1820-00.pdf
-
-
-
Navodila za uporabo (BA)
Operating Instructions Flow switch Flowphant T DTT31, DTT35
Flow switch for safe measurement and monitoring of mass flow and
temperature in industrial processesEN SL 08/02/2006Jezik:
angleščina
Verzija:
08/02/2006
Velikost datoteke:
1023.5 KB
Ime datoteke:
Ba218ren.pdf
-
-
-
Navodila za uporabo (BA)
ReadWin® Quick Setup
Operating Manual
ReadWin® Quick Setup Temperature
PC SoftwareEN SL 02/02/2005Jezik:
angleščina
Verzija:
02/02/2005
Velikost datoteke:
883.5 KB
Ime datoteke:
Ba213ra2.pdf
-
-
-
Posebna dokumentacija (SD)
Device viewer
Technical documentation in other languages
Jezik:
angleščina
Verzija:
14/07/2021
Velikost datoteke:
478.5 KB
Ime datoteke:
SD02429R09EN_0121.pdf
-
-
-
Posebna dokumentacija (SD)
UKCA marking
Flow, density, concentration, viscosity
EN SL 04/11/202201/10/2021Jezik:
angleščina
Verzija:
04/11/2022
Velikost datoteke:
357.4 KB
Ime datoteke:
SD02752DEN_0222-00.pdf
-
-
-
Posebna dokumentacija (SD)
SD Hygienic process connection types
Supplement to TM311, TM371, TM372, TM401, TM411, TM402, TM412, TT411,
TT412, TE411, TK40, TMR35, DTT35, TTR35Jezik:
angleščina
Verzija:
15/09/2023
Velikost datoteke:
800.3 KB
Ime datoteke:
SD03119TEN_0123-00.pdf
-
-
-
Brošura za področje dejavnosti (CP)
Catálogo soluciones esenciales
Alta calidad a precios competitivos
Jezik:
španščina
Verzija:
16/01/2017
Velikost datoteke:
8.9 MB
Ime datoteke:
CP01266Z.pdf
-
-
-
Izjava proizvajalca
Product family: Accessories: Pipe thermowell, Magphant, Process RTD hygienic, RTD thermometer
Product root: DTT35-, TK40-, TM311-, TM371-, TM372-, TM401-, TM402-, TM411-, TM412-, TMR35-, TT411-, TT412-, TTR35-
Declaration number: HE_01097_03.24
Manufacturer specification: Food hygieneJezik:
angleščina
Verzija:
24/10/2024
Velikost datoteke:
112.3 KB
Ime datoteke:
HE_01097_03.24_en.pdf
-
