Lastnosti na dlani
-
Accuracy
Standard 0.1%
Platinum 0.075% -
Process temperature
-20°C...130°C
(-4°F...266°F) -
Pressure measuring range
100 mbar...40 bar
(1.5psi...600psi) -
Process pressure / max. overpressure limit
60 bar (900 psi)
-
Main wetted parts
Ceraphire
Sealing
Alloy C276
316L -
Max. measurement distance
400 m (1312 ft) H2O
-
Material process membrane
Ceramic
-
Measuring cell
100 mbar...40 bar
(1.5 psi...600 psi)
relative/ absolute
Področje uporabe

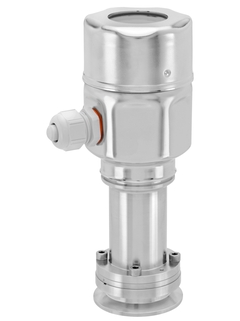

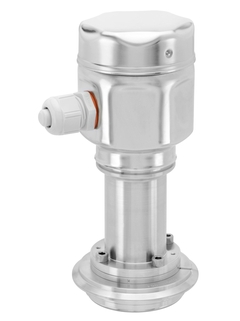

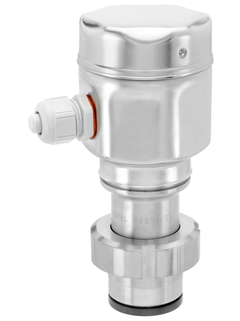

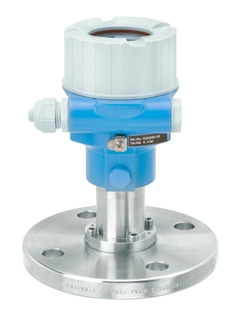

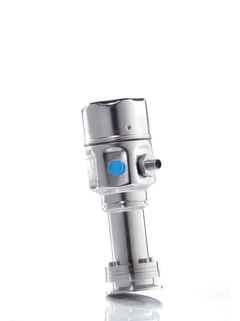

The Cerabar PMC51 digital pressure transmitter with capacitive, oil-free ceramic measuring cell is typically used in process and hygienic applications for pressure, level, volume or mass measurement in liquids and gases. It guarantees high degree of system safety thanks to vacuum-proof ceramic membrane with integrated breakage detection. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 / IEC 61511.
Single chamber aluminum or stainless steel (316L) housing.
Process connections: Threads, flanges or hygienic connections
Process temperature: -40 to +130°C (-40 to +266°F), 150°C (302°F) for 1h
Measuring ranges: -1/0 up to +40bar (-15/0 to +600psi)
Accuracy: ±0.1%, "Platinum" ±0.075%
International explosion protection certificates, SIL, hygienic approvals, marine approvals
Prednosti
Best fit for vacuum applications and applications with corrosive and abrasive media
Process safety through membrane breakage detection
Overload-resistant high purity ceramic sensor (99.9% Al2O3)
Condensation resistant also for hygienic applications
Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
Process pressure up to SIL2, certified to IEC 61508 and IEC 61511

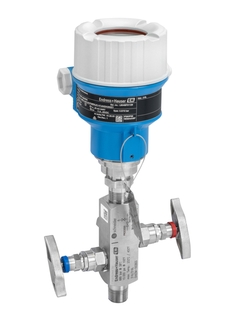

Available with mounted manifolds: always fit, always tested for leaks
Videoposnetki
Segment Lean
-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Specialni produkti
- Zasnovani za posebej zahtevne aplikacije
Tehnična odličnost
Preprostost
Spremenljivo
| FLEX izbira | Tehnična odličnost | Preprostost |
|---|---|---|
Segment Fundamental Zadostite svojim osnovnim merilnim potrebam |
Tehnična odličnost
|
Preprostost
|
Segment Lean Obvladajte ključne procese na preprost način |
Tehnična odličnost
|
Preprostost
|
Segment Extended Optimirajte procese z inovativnimi tehnologijami |
Tehnična odličnost
|
Preprostost
|
Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije |
Tehnična odličnost
|
Preprostost
Spremenljivo |
Loading alternative products
Predhodnik
Zgodbe o uspehu
Največkrat preneseno
-
-
Navodila za uporabo (BA)
Cerabar M /Deltabar M /Deltapilot M Operating Instructions PROFIBUS PA
Angleška različica - 07/2016
Cerabar M PMC51, PMP51, PMP55, Pressure transmitter Deltabar M PMD55 Differential pressure transmitter Deltapilot M FM
EN SL 13/07/201610/12/201411/06/201417/08/201225/01/2012Jezik:
angleščina
Verzija:
13/07/2016
Velikost datoteke:
7.8 MB
Ime datoteke:
BA00383PEN_0816.pdf
-
-
-
Tehnične informacije (TI)
TI Cerabar M PMC51, PMP51 , PMP55
Angleška različica - 04/2024
Process pressure measurement 4 to 20 mA, HART, IO-Link, PA, FF
EN SL 01/04/202422/08/202206/09/202101/04/202016/04/2019Jezik:
angleščina
Verzija:
01/04/2024
Velikost datoteke:
3.8 MB
Ime datoteke:
TI00436PEN_3224-00.pdf
-
Dokumenti 169
-
-
Tehnične informacije (TI)
TI Weld-in adapter, process adapter and flanges
Level, pressure and temperature measurement
EN SL 25/03/202415/09/202328/10/202130/07/202119/06/2020Jezik:
angleščina
Verzija:
25/03/2024
Velikost datoteke:
1.1 MB
Ime datoteke:
TI00426FEN_2524.pdf
-
-
-
Tehnične informacije (TI)
TI Cerabar M PMC51, PMP51 , PMP55
Process pressure measurement
4 to 20 mA, HART, IO-Link, PA, FFEN SL 01/04/202422/08/202206/09/202101/04/202016/04/2019Jezik:
angleščina
Verzija:
01/04/2024
Velikost datoteke:
3.8 MB
Ime datoteke:
TI00436PEN_3224-00.pdf
-
-
-
Navodila za uporabo (BA)
Cerabar M PMC51, PMP51/55 Analog
With ceramic and silicon sensors
modular design and easy
operationEN SL 13/07/201610/12/201411/06/201417/08/201225/01/2012Jezik:
angleščina
Verzija:
13/07/2016
Velikost datoteke:
1.1 MB
Ime datoteke:
BA00385PEN_2016.pdf
-
-
-
Navodila za uporabo (BA)
Cerabar M /Deltabar M /Deltapilot M Operating Instructions PROFIBUS PA
Cerabar M PMC51, PMP51, PMP55, Pressure transmitter
Deltabar M
PMD55 Differential pressure transmitter Deltapilot M FMEN SL 13/07/201610/12/201411/06/201417/08/201225/01/2012Jezik:
angleščina
Verzija:
13/07/2016
Velikost datoteke:
7.8 MB
Ime datoteke:
BA00383PEN_0816.pdf
-
-
-
Navodila za uporabo (BA)
Cerabar M, Deltapilot M
Pressure / hydrostatics
IO-LinkEN SL 22/08/202231/07/2021Jezik:
angleščina
Verzija:
22/08/2022
Velikost datoteke:
1.7 MB
Ime datoteke:
BA02136PEN_0222-00.pdf
-
-
-
Navodila za uporabo (BA)
Cerabar M, Deltabar M, Deltapilot M HART (V 01.00.zz)
Cerabar M PMC51, PMP51/55 Pressure transmitter
Deltabar M
PMD55
Differential pressure transmitter
Deltapilot M FMB50/5EN SL 13/07/201610/12/201411/06/201417/08/201225/01/2012Jezik:
angleščina
Verzija:
13/07/2016
Velikost datoteke:
4.8 MB
Ime datoteke:
BA00382PEN_2016.pdf
-
-
-
Navodila za uporabo (BA)
Cerabar M / Deltabar M / Deltapilot M, Operating Instructions FOUNDATION Fieldbus
Cerabar M PMC51, PMP51, PMP55 Pressure transmitter
Deltabar M PMD55 Differential pressure transmitter
Deltapilot M FMB50 Hydrostatic pressure transmitterEN SL 13/07/201610/12/201411/06/201417/08/201225/01/2012Jezik:
angleščina
Verzija:
13/07/2016
Velikost datoteke:
7.8 MB
Ime datoteke:
BA00384PEN_0816.pdf
-
-
-
Kratka navodila (KA)
Cerabar M PMC51, PMP51, PMP55
Meritve procesnega tlaka
FOUNDATION FieldbusEN SL 30/09/202113/07/201610/12/201411/06/201425/01/2012Jezik:
slovenščina
Verzija:
30/09/2021
Velikost datoteke:
914 KB
Ime datoteke:
KA01032PSL_0621-00.pdf
-
-
-
Kratka navodila (KA)
Cerabar M PMC51, PMP51, PMP55
Meritve procesnega tlaka
PROFIBUS PAEN SL 30/09/202113/07/201610/12/201411/06/201425/01/2012Jezik:
slovenščina
Verzija:
30/09/2021
Velikost datoteke:
942.9 KB
Ime datoteke:
KA01031PSL_0621-00.pdf
-
-
-
Kratka navodila (KA)
Cerabar M PMC51, PMP51, PMP55
Meritve procesnega tlaka
Analogna izvedbaEN SL 15/12/202113/07/201610/12/201411/06/201425/01/2012Jezik:
slovenščina
Verzija:
15/12/2021
Velikost datoteke:
829.8 KB
Ime datoteke:
KA01036PSL_1821-00.pdf
-
Iskanje nadomestnih delov po številki iz risbe
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Ground terminal T14/T15/T17, F30/F31
-
further parts
Kataloška koda71290825 -
-
Cable gland M20 PA, o-ring VMQ
-
Adapter housing/cable entry
Številka risbeKataloška koda1552002449 -
-
Cable gland M20 PA, O-ring EPDM/PTFE
-
Adapter housing/cable entry
Številka risbeKataloška koda1571092709 -
-
Cable gland M20 Metal, gasket
-
Adapter housing/cable entry
Številka risbeKataloška koda1571092711 -
-
Cable entry G1/2, gasket, adapter
-
Adapter housing/cable entry
Številka risbeKataloška koda1571092712 -
-
Plug 3p M12/M20, gasket
-
Adapter housing/cable entry
Številka risbeKataloška koda1552005984 -
-
M12 plug, IO-Link, housing side
-
Adapter housing/cable entry
Številka risbeKataloška koda1571570154 -
-
Plug 2/7-pole, HAN7D, gasket
-
Adapter housing/cable entry
Številka risbeKataloška koda1552020762 -
-
Plug valve, F30/F31, seal NBR
-
Adapter housing/cable entry
Številka risbeKataloška koda1571120017 -
-
Cover F15 316L, gasket
-
Cover
Številka risbeKataloška koda2052027000 -
-
Cover F15 316L, sight glass, gasket
-
Cover
Številka risbeKataloška koda2052027002 -
-
Cover F15, sight glass PC, 316L, gasket
-
Cover
Številka risbeKataloška koda2052028207 -
-
Cover F15 316L,claw,sight glass,gasket
-
Cover
Številka risbeKataloška koda2052028267 -
-
Cover F15 316L, claw, gasket
-
Cover
Številka risbeKataloška koda2052028268 -
-
Gasket 67.5x2.9x1.5 VMQ/PTFE, 5 pieces
-
Sealing
Številka risbeKataloška koda2152028179 -
-
Cover F30/31/34 Alu, gasket
-
Cover
Številka risbeKataloška koda2071092705 -
-
Cover F30/31 Alu, Ex d, gasket
-
Cover
Številka risbeKataloška koda2071092706 -
-
Cover F30/31/34 Alu, sight glass, gasket
-
Cover
Številka risbeKataloška koda2071092707 -
-
Cover F30/31 Alu,Exd,sight glass, gasket
-
Cover
Številka risbeKataloška koda2071092708 -
-
Sealing EPDM, F30/31/34, T14/15, 5 pcs.
-
Sealing
Številka risbeKataloška koda2152020429 -
-
Display module VU340, Cbar/Dbar/Dpilot M
-
Display
Številka risbeKataloška koda4071091670 -
-
Electronics FMB5x, PMC51, PMP5x, PMD55
-
Electronic
Številka risbeKataloška koda30XPP0001- -
-
Holder Display Dbar/Cbar/Dpilot M
-
Fixing
Številka risbeKataloška koda4171094113 -
-
Analog display VU340, Cbar, bracket
-
Display
Številka risbeKataloška koda4071111067 -
-
O-ring 26.7x1.78 HNBR 75, 3A, FDA, 5 pcs
-
Sealing
Številka risbeKataloška koda5752010155 -
-
O-ring 26.7x1.78 EPDM 70, 3A, USP, 5 pcs
-
Sealing
Številka risbeKataloška koda5752017989 -
-
O-ring 26.7x1.78 NBR 70, 5 pieces
-
Sealing
Številka risbeKataloška koda5752020769 -
-
O-ring 26.7x1.78 EPDM 70, 5 pieces
-
Sealing
Številka risbeKataloška koda5752020770 -
-
O-ring 26.7x1.78 FKM -40oC, 5 pieces
-
Sealing
Številka risbeKataloška koda5752020771 -
-
O-ring 26.7x1.78 FFKM 70 KALREZ, 1 pc.
-
Sealing
Številka risbeKataloška koda5752020772 -
-
O-ring 26.7x1.78 FKM, FDA, 5 pieces
-
Sealing
Številka risbeKataloška koda5771093308 -
-
O-ring 26.7x1.78 NBR, low temp., 5 pcs.
-
Sealing
Številka risbeKataloška koda5771114815 -
-
O-ring 26.7x1.78 silicone, FDA, 5 pcs.
-
Sealing
Številka risbeKataloška koda5771114816 -
-
O-ring 26.7x1.78 Fluoroprene, FDA, 1 pc.
-
Sealing
Številka risbeKataloška koda5771114817 -
-
O-ring 26.7x1.78 Kalrez 6221, FDA, 1 pc.
-
Sealing
Številka risbeKataloška koda5771114818 -
-
O-ring 26.7x1.78 Kalrez 6375, 1 pc.
-
Sealing
Številka risbeKataloška koda5771114820 -
-
O-ring 26.7x1.78 Kalrez 7075, 1 pc.
-
Sealing
Številka risbeKataloška koda5771114821 -
-
O-ring 27.1x1.6 FFKM 75 Perlast, 1pc.
-
Sealing
Številka risbeKataloška koda5771316464 -
-
Screw set, M5x16, 4 pieces
-
further parts
Kataloška koda71495134 -
-
Cable PE,80inch,sep. housing FMXXX/PMXXX
-
further parts
Kataloška koda71043886 -
-
Cable PE,200inch,sep.housing FMXXX/PMXXX
-
further parts
Kataloška koda71043888 -
-
Cable PE,400inch,sep.housing FMXXX/PMXXX
-
further parts
Kataloška koda71043889 -
-
Cable FEP,200inch,sep.housingFMXXX/PMXXX
-
further parts
Kataloška koda71070738 -
-
Profile gasket silicone, 5 pieces
-
further parts
Kataloška koda52023572 -
-
Profile gasket EPDM, 5 pieces
-
further parts
Kataloška koda71100719 -
-
EPDM O-ring+316L backring, EHEDG,1 piece
-
further parts
Kataloška koda71431380 -
-
EPDM O-ring, EHEDG, 5 pieces
-
further parts
Kataloška koda71545801 -
-
Flat seal 50x65x1 PTFE, FDA, 5 pieces
-
further parts
Kataloška koda52024228 -
-
Mountingset Cerabar,Deltapilot,Levelflex
Kataloška koda71102216 -
Mounting bracket 2 valve,stainless steel
Kataloška koda71372498 -
Adapter UNI, DIN11851 DN40, 316L
Kataloška koda71114172 -
Adapter UNI, DIN11851 DN50, 316L
Kataloška koda71114173 -
Adapter UNI, DRD DN50, 65mm, 316L
Kataloška koda71114174 -
Adapter UNI, Clamp 2", 316L
Kataloška koda71114176 -
Adapter Univ-/Variv N DN40-162 316L
Kataloška koda71114177 -
Adapter UNI, DIN11851 DN40, 316L, 3.1
Kataloška koda71114178 -
Adapter UNI, DIN11851 DN50, 316L, 3.1
Kataloška koda71114205 -
Adapter UNI, DRD DN50, 65mm, 316L, 3.1
Kataloška koda71114206 -
Adapter UNI, Clamp 2", 316L, 3.1
Kataloška koda71114207 -
Adapter Univ-/Variv N DN40 316L 3.1
Kataloška koda71114208 -
Weld-in adapter G1-1/2, 316L
Kataloška koda52024469 -
Weld-in adapter G1-1/2, 316L, 3.1
Kataloška koda52024470 -
Weld-in adapter UNI D65, 316L
Kataloška koda214880-0002 -
Weld-in adapter UNI D65, 316L, 3.1
Kataloška koda52010174 -
Weld-in adapter UNI D85, 316L
Kataloška koda52006262 -
Weld-in adapter UNI D85, 316L, 3.1
Kataloška koda52010173 -
Weld-in adapter UNI 6" D85, 316L
Kataloška koda71114160 -
Weld-in adapter UNI 6" D85, 316L 3.1
Kataloška koda71114171 -
Blind plug weld-in adapter UNI D65/85
Kataloška koda71580894 -
Weld-in adapter DRD DN50, 316L
Kataloška koda52002041 -
Weld-in adapter DRD DN50, 316L, 3.1
Kataloška koda52011899 -
Weld-in dummy, adapter G1-1/2
Kataloška koda52024471 -
Weld-in dummy, flange DRD DN50, 65mm
Kataloška koda71114209 -
Adapter Uni, Clamp 3", 316L, 3.1
Kataloška koda71350314 -
Adapter Uni, Clamp 3", 316L
Kataloška koda71350315 -
Weld-in dummy, adapter UNI 6" D65
Kataloška koda71114211 -
Weld-in dummy, adapter UNI D65/D85
Kataloška koda71114210
2 products & bundles
Izdelki 2
Pogosto kupljeno skupaj
Dodatna oprema
- Mountingset Cerabar,Deltapilot,Levelflex
- Mounting bracket 2 valve,stainless steel
Sorodni izdelki
