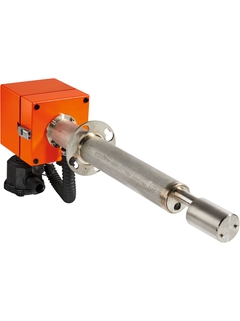

product picture of the particle measuring device DUSTHUNTER SP30

DUSTHUNTER SP30
particle measuring device

Measure intelligently. Reduce costs.

IDSP30
Nalaganje cene
Cene trenutno niso na voljo
Price on request
from CHF ??.-
product picture of the particle measuring device DUSTHUNTER SP30
  • F
  • L
  • E
  • X
©Endress+Hauser

Lastnosti na dlani

  • Process temperature

    40 °C ... +220 °C

  • Measuring range

    Scattered light intensity: 0 ... 7.5 SI / 0 ... 3,000 SI
    Measuring ranges freely selectable; nine measuring ranges pre-configured (0 ... 7.5/15/45/75/150/225/375/1,000/3,000 SI)

Področje uporabe

The DUSTHUNTER SP30 is a measuring device which reliably detects very low to high dust content. The automated monitoring of the zero and reference point ensures a high level of accuracy. Thanks to its compact design, the DUSTHUNTER SP30 is available as an independent measuring device but also with an integrated purge air unit and MCU control unit for additional functions as an option. Several mounting options and probe lengths are available.

  • Emission monitoring which does not require permission in industrial systems

  • Monitoring of cloth filters for defective filter bags

  • Dust monitoring in grinding and dosing systems

  • Dust concentration measurements in exhaust gas ducts


Device properties:

  • Independent measuring device – with or without MCU control unit

  • Automated monitoring of zero and reference point

  • Integrated purge air unit as an option

  • Installation on one side of a duct

  • Rugged and compact structure

  • No moving parts in the duct

Prednosti

  • Accurate dust measurement – independently of gas velocity or particle charge

  • Convenient data transmission via Modbus® and analog output directly from
    the sensor

  • Versatile thanks to several configurable measuring ranges

  • Two calibration curves for switching with different dust sources

  • No external purge air unit required as it is integrated into the device (option)

  • High degree of flexibility due to different
    mounting options
