Lastnosti na dlani
-
Measuring range
0.1 to 9999 µg/l (ppb) Na
-
Process temperature
10 to 40 °C
(50 to 104 °F) -
Process pressure
1 to 5 bar (abs)
14.5 to 72.5 psi
Področje uporabe

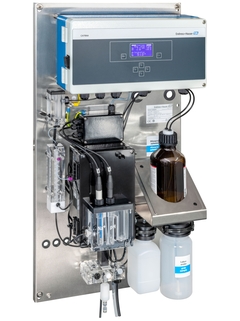

Protect your water steam cycles and ion exchangers with the CA76NA sodium analyzer! An increase in sodium levels in high-purity or boiler feedwater indicates the presence of unwanted dissolved impurities. This can cause serious damage and consequently expensive repairs. CA76NA provides highly accurate online monitoring of water quality and enables fast detection of critical events. The sodium analyzer supports your preventive maintenance strategy to keep your power plant running.
The CA76NA sodium analyzer monitors low levels of sodium in the power industry and utilities:
Indication of the purity of water and steam used in boilers and turbines.
Provision of early warning for condenser leakages or malfunction of ion exchangers.
Control of the incoming water quality in power plants that use desalination plants as water source.
Prednosti
Protection of expensive plant equipments in the power industry: CA76NA sodium analyzer monitors low levels of sodium in water steam cycles detecting carryover and impurities in your power plant.
Early indication of condenser leaks via online sodium measurement after the condensate extraction pump.
Reduced operating costs thanks to low consumption of DIPA reagent and standard solution.

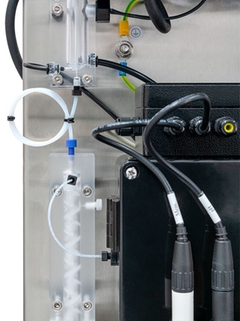

Precise measurement: Separate reference pH electrode for accurate temperature compensation and optimized pH value adjustment.
-
Optimized investment costs: One analyzer for up to six sample channels.
Perfect process adaptation: Individual selection of sample channels and freely adjustable measuring intervals.
-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Specialni produkti
- Zasnovani za posebej zahtevne aplikacije
Tehnična odličnost
Preprostost
Spremenljivo
FLEX izbira | Tehnična odličnost | Preprostost |
---|---|---|
Segment Fundamental Zadostite svojim osnovnim merilnim potrebam |
Tehnična odličnost
|
Preprostost
|
Segment Lean Obvladajte ključne procese na preprost način |
Tehnična odličnost
|
Preprostost
|
Segment Extended Optimirajte procese z inovativnimi tehnologijami |
Tehnična odličnost
|
Preprostost
|
Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije |
Tehnična odličnost
|
Preprostost
Spremenljivo |
-
-
Tehnične informacije (TI)
CA76NA
Analyzer for sodium
EN SL 13/07/202231/05/201918/08/201723/05/2017Jezik:
angleščina
Verzija:
13/07/2022
Velikost datoteke:
732.6 KB
Ime datoteke:
TI01339CEN_0422-00.pdf
-
-
-
Navodila za uporabo (BA)
CA76NA
Analyzer for sodium
EN SL 08/08/202216/01/202018/08/201723/05/2017Jezik:
angleščina
Verzija:
08/08/2022
Velikost datoteke:
1.7 MB
Ime datoteke:
BA01706CEN_0422-00.pdf
-
-
-
Kratka navodila (KA)
CA76NA
Analizator za natrij
EN SL 11/07/202230/11/201918/08/201723/05/2017Jezik:
slovenščina
Verzija:
11/07/2022
Velikost datoteke:
1.1 MB
Ime datoteke:
KA01305CSL_0422-00.pdf
-
-
-
Navodila za vgradnjo (EA)
Kit CA76NA
Electrodes for installation in the analyzer
EN SL 23/09/202218/08/201723/05/2017Jezik:
angleščina
Verzija:
23/09/2022
Velikost datoteke:
387.6 KB
Ime datoteke:
EA01213CEN_0322-00.pdf
-
-
-
Navodila za vgradnjo (EA)
Kit CA76NA
Starter kit
EN SL 23/09/202223/05/2017Jezik:
angleščina
Verzija:
23/09/2022
Velikost datoteke:
505.2 KB
Ime datoteke:
EA01214CEN_0222-00.pdf
-
-
-
