Lastnosti na dlani
-
Measuring range
0.004 to 30 mg/l
0.05 to 330 %SAT
0.1 to 700 hPa -
Process temperature
1 to 140 °C
(32 to 284 °F) -
Process pressure
0.02 to 13 bar abs
(0 to 190 psi)
Področje uporabe

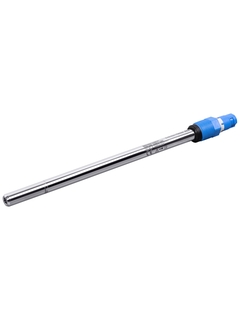

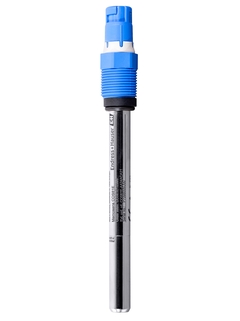

Memosens COS81E is the ideal optical oxygen sensor for hygienic applications. Its well-tuned measuring system prevents ageing of the optical spot and offers precise, long-term stable measurements for high product quality. Thanks to its approvals for hazardous and dust-explosive areas, COS81E is perfectly suited for inertization applications. With Memosens 2.0 digital technology, COS81E offers extended data storage providing the perfect basis for predictive maintenance and efficient operation.
Memosens COS81E measures oxygen in applications with high demands to sterility and hygiene such as:
Fermentation
Drinking water production
Inertization
With its international explosion protection approvals, such as ATEX and IECEx, the Memosens COS81E oxygen sensor is suitable for hazardous area use.
Prednosti
Memosens COS81E is designed according to EHEDG and ASME BPE. It avoids cross-contamination and is fully compliant to USP class VI and FDA as well as all GMP and GLP requirements.
High process up-time: Precalibrate the sensor in your lab and then swap it into your process with plug & play. It does not need polarization time and is immediately ready to measure.
-
Reliable measurement: A built-in reference LED compensates the ageing of the measuring LED. This ensures precise measured values even after CIP/SIP and autoclaving.
Reduce your maintenance effort: Memosens COS81E does not have a difficult-to-handle electrolyte or sensitive membrane. Just exchange the sensor cap, perform a calibration and you are done.
The sensor can be used in process applications as well as benchtop fermenters. Providing you with 100% measuring consistency from the first lab trials to the final scaled-up process and your process lab.
Perfectly suited for inertization processes thanks to its approvals for hazardous and dust-explosive areas.
IIoT ready: Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.
Videoposnetki
Segment Extended
-
Vrhunski produkti
- Visoko funkcionalni in praktični
Tehnična odličnost
Preprostost
-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Specialni produkti
- Zasnovani za posebej zahtevne aplikacije
Tehnična odličnost
Preprostost
Spremenljivo
FLEX izbira | Tehnična odličnost | Preprostost |
---|---|---|
Segment Fundamental Zadostite svojim osnovnim merilnim potrebam |
Tehnična odličnost
|
Preprostost
|
Segment Lean Obvladajte ključne procese na preprost način |
Tehnična odličnost
|
Preprostost
|
Segment Extended Optimirajte procese z inovativnimi tehnologijami |
Tehnična odličnost
|
Preprostost
|
Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije |
Tehnična odličnost
|
Preprostost
Spremenljivo |
Predhodnik
-
-
Tehnične informacije (TI)
Memosens COS81E
Hygienic optical oxygen sensor with maximum measurement stability over
multiple sterilization cyclesEN SL 13/04/2021Jezik:
angleščina
Verzija:
13/04/2021
Velikost datoteke:
1.6 MB
Ime datoteke:
TI01558CEN_0120.pdf
-
-
-
Navodila za uporabo (BA)
Memosens COS81E
Hygienic, optical sensor with Memosens 2.0 technology forthe
measurement of oxygenEN SL 13/04/202102/10/2020Jezik:
angleščina
Verzija:
13/04/2021
Velikost datoteke:
1.9 MB
Ime datoteke:
BA02066CEN_0221.pdf
-
-
-
Kratka navodila (KA)
Memosens COS81E
Higienski optični senzor s tehnologijo Memosens 2.0 za merjenje kisika
EN SL 12/04/202102/10/2020Jezik:
slovenščina
Verzija:
12/04/2021
Velikost datoteke:
661.5 KB
Ime datoteke:
KA01484CSL_0221.pdf
-
-
-
Navodila za vgradnjo (EA)
EA Kit COV81
For the maintenance of COS81D/E sensors
EN SL 02/10/202414/12/2022Jezik:
angleščina
Verzija:
02/10/2024
Velikost datoteke:
757.4 KB
Ime datoteke:
EA01460CEN_0224-00.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens COS81E
Supplement to BA02066C
Safety instructions for electrical apparatus in explosion-hazardous
areasEN SL 05/07/2021Jezik:
angleščina
Verzija:
05/07/2021
Velikost datoteke:
504.6 KB
Ime datoteke:
XA02475CEN_0121.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens COS81E
Supplement to BA02066C
Safety instructions for electrical apparatus in explosion-hazardous
areasEN SL 05/07/2021Jezik:
angleščina
Verzija:
05/07/2021
Velikost datoteke:
591.3 KB
Ime datoteke:
XA02476CEN_0121.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens COS81E
Supplement to BA02066C
Safety instructions for electrical apparatus in explosion-hazardous
areasEN SL 05/07/2021Jezik:
angleščina
Verzija:
05/07/2021
Velikost datoteke:
488.4 KB
Ime datoteke:
XA02485CEN_0121.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens COS81E
UK Ex II 1G Ex ia op is IIC T6… T3 Ga
UK Ex II 1D Ex ia op is IIIC T90°C… T200°C Da
Safety instructions for electrical apparatus in explosion-hazardous
areasJezik:
angleščina
Verzija:
11/03/2022
Velikost datoteke:
419 KB
Ime datoteke:
XA02842CEN_0122-00.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens COS81E
KOR Ex ia op is IIC T6… T3 Ga
KOR Ex ia op is IIIC T90°C… T200°C Da
Safety instructions for electrical apparatus in explosion-hazardous
areasEN SL 18/03/2022Jezik:
angleščina
Verzija:
18/03/2022
Velikost datoteke:
418.5 KB
Ime datoteke:
XA02838CEN_0121-00.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens COS81E
EAC Ex 0Ex ia IIC T6… T3 Ga
EAC Ex ia op is IIIC T90 °C…T200 °C Da
Safety instructions for electrical apparatus in explosion-hazardous
areasEN SL 11/05/2022Jezik:
angleščina
Verzija:
11/05/2022
Velikost datoteke:
418.2 KB
Ime datoteke:
XA02839CEN_0121-00.pdf
-
