Lastnosti na dlani
-
Measuring range
Application B:
• pH: 0 to 14
Application H:
• pH: 0 to 12 -
Process temperature
1 to 140 °C (32 to 284 °F)
-
Process pressure
0,8 to 14 bar (11,6 to 203 psi) (absolute)
Področje uporabe

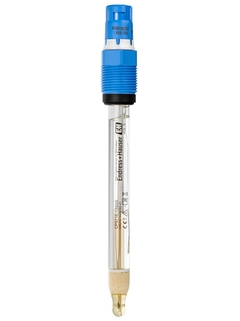

Memosens CPS71E is specially designed for demanding processes. Its unique, contamination-resistant reference and its resistance to moisture ensure reliable measurement even in heavily polluted, aggressive media such as strong acids and bases. Thanks to Memosens 2.0 digital technology, CPS71E offers extended storage of calibration and process data providing the perfect basis for predictive maintenance. Pre-calibration in the lab and quick sensor exchange on site maximize process uptime.
Processes in chemical industry and monitoring of processes with:
High proportion of electrode poisons such as H2S
Quickly changing pH values

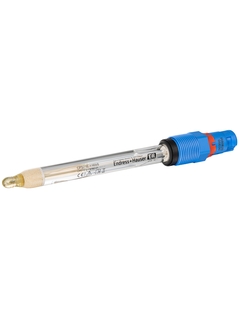

With ATEX, IECEx, CSA C/US, NEPSI, Japan, INMETRO approvals for use in hazardous areas, zones 0, 1 and 2.
Prednosti
-
The electrode's unique ion trap prevents poisoning of the junction and reference, making it resistant to strong acids and bases and ensuring a long sensor lifetime.
-
The optional pressurized reference allows for reliable measurement in blocking media such as dispersions.
Flexible installation thanks to optional upside-down mounting
-
Inductive cable connection and non-contact signal transmission eliminate any problems due to moisture or corrosion and increase process integrity.
Fast sensor exchange on site reduces process downtime and operating costs.
Memosens 2.0 digital technology makes trend identification and predictive maintenance possible thanks to its extended storage of calibration and process data. The technology paves the way for advanced IIoT services.
Videoposnetki
Segment Extended
-
Vrhunski produkti
- Visoko funkcionalni in praktični
Tehnična odličnost
Preprostost
-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Specialni produkti
- Zasnovani za posebej zahtevne aplikacije
Tehnična odličnost
Preprostost
Spremenljivo
FLEX izbira | Tehnična odličnost | Preprostost |
---|---|---|
Segment Fundamental Zadostite svojim osnovnim merilnim potrebam |
Tehnična odličnost
|
Preprostost
|
Segment Lean Obvladajte ključne procese na preprost način |
Tehnična odličnost
|
Preprostost
|
Segment Extended Optimirajte procese z inovativnimi tehnologijami |
Tehnična odličnost
|
Preprostost
|
Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije |
Tehnična odličnost
|
Preprostost
Spremenljivo |
Predhodnik
-
-
Tehnične informacije (TI)
Memosens CPS71E
Angleška različica - 03/2021
pH sensor for chemical process applications
EN SL 19/03/2021Jezik:
angleščina
Verzija:
19/03/2021
Velikost datoteke:
868.7 KB
Ime datoteke:
TI01496CEN_0221.pdf
-
-
-
Tehnične informacije (TI)
Memosens CPS71E
pH sensor for chemical process applications
EN SL 19/03/2021Jezik:
angleščina
Verzija:
19/03/2021
Velikost datoteke:
868.7 KB
Ime datoteke:
TI01496CEN_0221.pdf
-
-
-
Navodila za uporabo (BA)
pH senzorji CPSx1E, CPFx1E ORP senzorji CPSx2E, CPFx2E
Meritve pH in ORP
EN SL 14/10/202131/03/202115/03/202109/07/202019/05/2020Jezik:
slovenščina
Verzija:
14/10/2021
Velikost datoteke:
1 MB
Ime datoteke:
BA01988CSL_0421.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
pH and ORP measurement
Supplement to BA01988C, BA02142C
Safety instructions for electrical apparatus in explosion-hazardous
areas
UK Ex II 1 G Ex ia IIC T3/T4/T6 Ga
UK Ex II 1GEx ia IIC T4/T6 GaJezik:
angleščina
Verzija:
26/11/2021
Velikost datoteke:
684.7 KB
Ime datoteke:
XA02588CEN_0221-00.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
pH and ORP measurement
Supplement to BA01988C, BA02142C
Safety instructions for electrical apparatus in explosion-hazardous
areas
EAC Ex 0Ex ia IIC T3/T4/T6 Ga X
EAC Ex 0Ex ia IIC T4/T6 Ga XEN SL 26/01/2022Jezik:
angleščina
Verzija:
26/01/2022
Velikost datoteke:
424.3 KB
Ime datoteke:
XA02817CEN_0122-00.pdf
-
-
-
Ex varnostna navodila (XA)
Senzorji pH/ORP Memosens
Meritve pH in ORP
Varnostna navodila za električno opremo v eksplozijsko nevarnih območjihEN SL 23/04/202118/02/202103/07/2020Jezik:
slovenščina
Verzija:
23/04/2021
Velikost datoteke:
894.7 KB
Ime datoteke:
XA01991CSL_0321.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
pH and ORP measurement
Supplement to: BA01988C, BA02142C
Safety instructions for electrical apparatus in explosion-hazardous
areas
NEPSI Ex ia IIC T3/T4/T6 Ga
NEPSI Ex ia IIC T4/T6 GaEN SL 07/09/202105/08/2020Jezik:
angleščina
Verzija:
07/09/2021
Velikost datoteke:
529.3 KB
Ime datoteke:
XA02113CEN_0221.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
pH and ORP measurement
Safety instructions for electrical apparatus in explosion-hazardous
areasEN SL 22/04/202115/10/2020Jezik:
angleščina
Verzija:
22/04/2021
Velikost datoteke:
491.8 KB
Ime datoteke:
XA02244CEN_0221.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
pH and ORP measurement
Supplement to BA01988C, BA02142C
Safety instructions for electrical apparatus in explosion-hazardous
areas
KOR Ex ia IIC T3/T4/T6 Ga
KOR Ex ia IIC T4/T6 GaEN SL 22/10/2021Jezik:
angleščina
Verzija:
22/10/2021
Velikost datoteke:
425.6 KB
Ime datoteke:
XA02739CEN_0121.pdf
-
-
-
Ex varnostna navodila (XA)
XA Memosens pH/ORP sensors
pH and ORP measurement
Safety instructions for electrical apparatus in explosion-hazardous
areasEN SL 26/08/2024Jezik:
angleščina
Verzija:
26/08/2024
Velikost datoteke:
503.6 KB
Ime datoteke:
XA03347CEN_0124-00.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
pH and ORP measurement
Safety instructions for electrical apparatus in explosion-hazardous
areasEN SL 22/04/202131/07/2020Jezik:
angleščina
Verzija:
22/04/2021
Velikost datoteke:
505.2 KB
Ime datoteke:
XA02082CEN_0221.pdf
-
