Lastnosti na dlani
-
Process temperature
Any
-
Process pressure / max. overpressure limit
Any
-
Main wetted parts
Non-contact
Področje uporabe

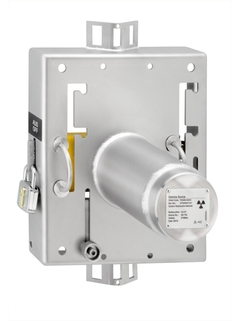

The FQG60 source container is designed to hold the radioactive source during radiometric point level detection, continuous level and density measurement. The radiation is emitted almost unattenuated in one direction only, and is damped in all other directions. This guarantees highest safety for the personnel and a reliable measurement.
Designed to hold the radioactive source during radiometric point level detection, level measurement and density measurement. Radiation is emitted almost unattenuated in one direction only, and is damped in all other directions.
Activity: 137Cs to 1.1GBq (30mCi)
Temperature: No limitation (non-invasive, extraneous)
Pressure: No limitation (non-invasive, extraneous)
Prednosti
High safety level thanks to highest classification for the source supplied (DIN 25426/ISO 2919, typically classification C66646) and safe and easy source replacement
Reliable measurement due to small-size, lightweight container which provides optimized screening

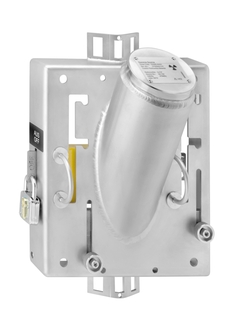

Compact, easy-to-mount device with the possibility of various angles of emission for optimum adaptation to the application
Manual switching on/off and padlock to fix switching positions (on/off), or snap hook to fix switching position; on-switch status easily identified
Integrated mounting device for density measurement on pipes
Optional: Calibration plate for quick and easy density recalibration
Videoposnetki
Segment Xpert
-
Specialni produkti
- Zasnovani za posebej zahtevne aplikacije
Tehnična odličnost
Preprostost
Spremenljivo
-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Specialni produkti
- Zasnovani za posebej zahtevne aplikacije
Tehnična odličnost
Preprostost
Spremenljivo
| FLEX izbira | Tehnična odličnost | Preprostost |
|---|---|---|
Segment Fundamental Zadostite svojim osnovnim merilnim potrebam |
Tehnična odličnost
|
Preprostost
|
Segment Lean Obvladajte ključne procese na preprost način |
Tehnična odličnost
|
Preprostost
|
Segment Extended Optimirajte procese z inovativnimi tehnologijami |
Tehnična odličnost
|
Preprostost
|
Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije |
Tehnična odličnost
|
Preprostost
Spremenljivo |
Loading alternative products
Zgodbe o uspehu
Dokumenti 30
-
-
Tehnične informacije (TI)
Technical Information / Operating Instructions Source container FQG60 Radiometric Level Measurement
Container with radiation source insert with manual switch-on and
switch-offEN SL 11/05/202024/02/201614/09/201512/05/201406/03/2013Jezik:
slovenščina
Verzija:
11/05/2020
Velikost datoteke:
1.3 MB
Ime datoteke:
TI00445FSL_1820.pdf
-
-
-
Navodila za vgradnjo (EA)
Snap hook, retaining element for FQG60 Installation instruction
Source container FQG60
EN SL 13/04/2012Jezik:
angleščina
Verzija:
13/04/2012
Velikost datoteke:
278.7 KB
Ime datoteke:
EA00058FA2_0111.pdf
-
-
-
Navodila za vgradnjo (EA)
Saeling set FQG60 Installation instruction
Source container FQG60
EN SL 13/04/2012Jezik:
angleščina
Verzija:
13/04/2012
Velikost datoteke:
281.5 KB
Ime datoteke:
EA00049FA2_0111.pdf
-
-
-
ZE (certifikat)
RFID TAG Certificate/Declaration of Conformity
ATEX:
II 2 G Ex ia IIC T6 Gb
II 2 D Ex ia IIIC T80°C Db;
IECEx:
Ex ia IIC T6 Gb
Ex ia IIIC T80°C Db
IECEx EPS 15.0042X; EPS 15 ATEX 1 1011 XEN SL 08/02/201920/06/201607/09/201520/08/2015Jezik:
angleščina
Verzija:
08/02/2019
Velikost datoteke:
6.1 MB
Ime datoteke:
ZE01020FA2_0418.pdf
-
-
-
Posebna dokumentacija (SD)
SD Transportation cask for shipping radioactive sources
Radiometric level measurement
EN SL 08/03/202417/01/201923/11/2015Jezik:
angleščina
Verzija:
08/03/2024
Velikost datoteke:
3.1 MB
Ime datoteke:
SD01316FEN_0324-00.pdf
-
-
-
Posebna dokumentacija (SD)
RFID TAG Special Documentation
RFID TAG
Special DocumentationEN SL 12/08/201511/08/2015Jezik:
angleščina
Verzija:
12/08/2015
Velikost datoteke:
331 KB
Ime datoteke:
SD01502FA2_0215.pdf
-
-
-
Posebna dokumentacija (SD)
Operating Instructions Source Container FQG60 Radiometric Level Measurement
U.S. General Licensees
Radiation Safety and Technical Reference ManualEN SL 24/02/201623/09/201305/08/201306/03/201314/03/2011Jezik:
angleščina
Verzija:
24/02/2016
Velikost datoteke:
335.2 KB
Ime datoteke:
SD00335FEN_0516.pdf
-
-
-
Posebna dokumentacija (SD)
QGx, FQGx, FSG6x
Returns: Source containers, gamma radiation sources
EN SL 19/06/202031/10/201711/12/201023/03/2010Jezik:
angleščina
Verzija:
19/06/2020
Velikost datoteke:
8.3 MB
Ime datoteke:
SD00309FEN_1520.pdf
-
-
-
Posebna dokumentacija (SD)
QG020, QG100, FQG60, FQG61, FQG62, FQG63, FQG66, QG2000, Mulitplex 9S, TSP Source container
Typ A Verpackungen
Type A PackageEN SL 29/04/202013/04/201708/04/201631/07/201503/07/2015Jezik:
angleščina
Verzija:
29/04/2020
Velikost datoteke:
1.9 MB
Ime datoteke:
SD00311FA2_1920.pdf
-
-
-
Posebna dokumentacija (SD)
SD IEC 61406-1
Automatic identification of physical objects
EN SL 12/04/202312/01/202324/10/202208/11/2021Jezik:
angleščina
Verzija:
12/04/2023
Velikost datoteke:
649.5 KB
Ime datoteke:
SD02796PEN_0523-00.pdf
-
Iskanje nadomestnih delov po številki iz risbe
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Set of nameplate FQG6x
-
further parts
Kataloška koda71099421 -
-
Padlock FQG6x
-
further parts
Številka risbeKataloška koda2271301302 -
-
Snap hook, retaining element FQG60
-
further parts
Številka risbeKataloška koda2371130944 -
-
Label "caution radiation" _SS
Kataloška koda916497-0000
