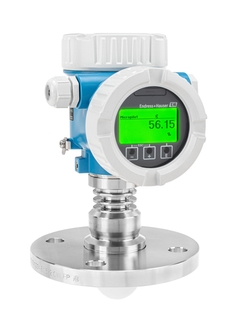

Micropilot FMR62B – product picture

Micropilot FMR62B – 80 GHz radar sensor

Smart Safety for your process

FMR62B
Nalaganje cene
Cene trenutno niso na voljo
Price on request
from CHF ??.-
Micropilot FMR62B – product picture
  • F
  • L
  • E
  • X
©Endress+Hauser

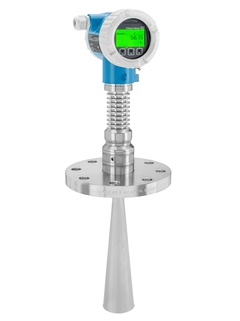

Micropilot FMR62B with high temperature antenna
  • F
  • L
  • E
  • X
©Endress+Hauser

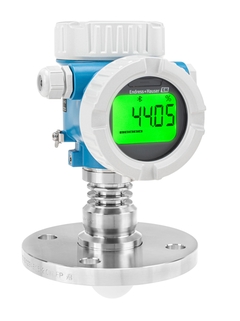

Micropilot FMR62B with PTFE flush
  • F
  • L
  • E
  • X
©Endress+Hauser
Micropilot FMR62B with drip-off antenna
  • F
  • L
  • E
  • X
©Endress+Hauser

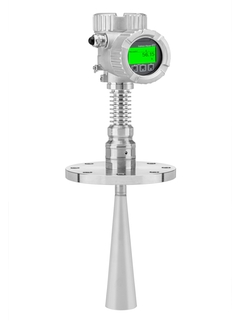

Micropilot FMR62B with high temperature antenna and L-form housing
  • F
  • L
  • E
  • X
©Endress+Hauser

Lastnosti na dlani

  • Accuracy

    +/-1 mm (0.04 in)

  • Process temperature

    -196 … +450 °C (-321 … +842 °F)

  • Process pressure / max. overpressure limit

    Vacuum...160 bar (2320 psi)

  • Max. measurement distance

    80 m (262 ft)

  • Main wetted parts

    316L or PTFE (clad 316L flanges)

Področje uporabe

Micropilot FMR62B is part of the new generation of 80 GHz radar sensors. It is used for continuous non-contact level measurement in challenging liquid applications. It masters process requirements like high temperatures, high process pressure as well as changing media. Testing concepts for SIL-locking and proof tests reduces the risk of systematic errors. Heartbeat Technology offers verification and monitoring functions to identify anomalies for increased safety and productivity.

The Micropilot FMR62B is suitable for free-space applications up to 80m and offers high beam focusing for vessels with many internal fittings.

  • Process connections: Flanges

  • Temperature: –196 to +450 °C (-320 to +842°F)

  • Pressure: –1 bis +160 bar (-14.5 to 2320.6 psi)

  • Maximum measuring range: 80 m (262.5 ft)

  • Accuracy: ±1 mm (0.04 in)

  • W-band: 80 GHz

  • International explosion protection certificates, overfill prevention WHG, SIL, marine approval, 5- or 10-point factory calibration certificate

Prednosti

  • Increased productivity thanks to process monitoring, verification, and diagnostics in the running process with Heartbeat Technology

  • Safety by design: Device development according to IEC 61508 for SIL 2 and SIL 3 applications (e.g. in homogeneous redundancy)

  • Reduction of systematic errors through guided SIL-locking, verification and proof testing

  • Easy handling through intuitive operation and wizards, for commissioning and verifications

  • Easier troubleshooting through recommended actions shown on the display
