Non-contact installation: any Within installation: -40°C...+70°C (-40°F...+158°F) With high temperature adapter: up to +450°C (+842°F)
Process pressure / max. overpressure limit
Non-contact installation: any Within installation: 0.5 bar ... 6.8 bar (7.2 psi ... 99 psi) abs. With high pressure adapter: up to +21 bar (+305 psi) abs.

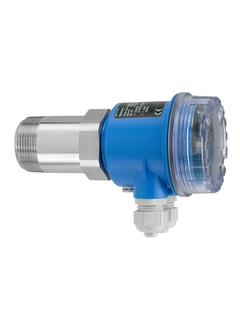

The Soliwave FDR56 microwave barrier uses a contact-free procedure for detection of point levels. It can be installed in containers, conduits, shafts or on free fall shafts. It is possible to take a measurement through non-metallic container materials from the outside. Suitable as point level switch for controlling and counting all types of bulk solids. It interacts with the Soliwave FQR56 emitter.
Typical bulk solids are: Wood chips, wood dust or flour; plaster, cement, ash; paper or cardboard shred, gravel, sand, dried powders in general, bags and boxes.
Process connections: Threads
Ambient temperature: -40 to +70°C (-40 to +158°F)
Measuring range: Max. 100m (328ft)
International explosion protection certificates
Prednosti
Highly reliable measurement due to flush-mounted installation and possible non-contact installation as well as indication of the signal strength on the transceiver
Mechanical robust solution ensures cost savings over the whole life cycle of the product: No wear and tear, process-wetted ceramic sensor diaphragm (optional), long serviceable life, maintenance free
Electronics housing can be rotated by 360°, allowing adjustment into optimum position after installation
Direct connection of the supply voltage (emitter and receiver separately or together)
Mechanically compatible to FQR50/FDR50 microwave barrier, existing process connections can continue to be used; likewise, accessories such as adapter flanges, installation brackets and sight glasses can continue to be used
Transceiver Non-contact point level detection and flow monitoring Detecting, counting and positioning of objects Monitoring of material transfer points Detection and analysis of deposits and contamination Installation: Non-contact installation (transmission window) or front-flush installation (contact)
Specialities
Measuement range: max. 100 m
Supply / Communication
85 ... 253 VAC 20 ... 60 VDC/ 20 ... 30 VAC
Ambient temperature
-40°C...+70°C (-40°F...+158°F)
Process temperature
Non-contact installation: any Within installation: -40°C...+70°C (-40°F...+158°F) With high temperature adapter: up to +450°C (+842°F)
Process pressure / max. overpressure limit
Non-contact installation: any Within installation: 0.5 bar ... 6.8 bar (7.2 psi ... 99 psi) abs. With high pressure adapter: up to +21 bar (+305 psi) abs.
Min. density of medium
Solid weight: > 10 g/l
Main wetted parts
Non-contact installation: no wetted parts Within installation: 316Ti or Aluminium; PTFE or Ceramic
Process connection
1-1/2" R, 1-1/2" G, 1-1/2" NPT
Process connection hygienic
Non-contact installation
Communication
Relays SPDT Solid-State-Relaiy 4 ... 20 mA
Certificates / Approvals
ATEX, CSA C/US, IEC Ex
Design approvals
EN10204-3.1
Options
Sight glass High temperature adapter High pressure adapter Installation bracket FAR50, FAR51, FAR52, FAR53, FAR54, FAR55
