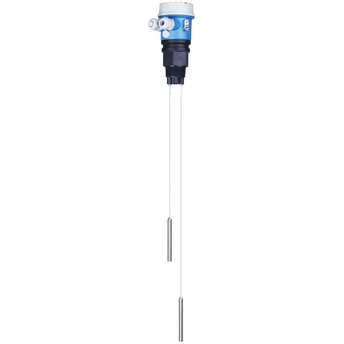

Liquipoint FTW32 - Conductive point level detection

Conductive
Point level detection
Liquipoint FTW32

Rope probe for multipoint detection for up to  5 switch points

FTW32

Primerjava

Lastnosti na dlani

Process temperature

-40 °C ... 70 °C
(-40 °F ... 158 °F)
Process pressure / max. overpressure limit

Vacuum ... 10 bar
(Vacuum ... 145 psi)
Min. conductivity of medium

10 µS/cm

Vse specifikacije

Področje uporabe

The Liquipoint FTW32 offers simple and safe point level detection in conductive liquids. It offers numerous measuring possibilities due to multipoint detection (up to 5 rods).

For use in conductive liquids (as of 10μS/cm). For overfill prevention, dry running protection,
two-point control of pumps or multiple point detection.

Process connections: Threads
Sensor length: 0.25 to 15m (10 to 590")
Temperature: -40 to 70°C (-40 to 158°F)
Pressure: -1 to 10bar (-14.5 to 145psi)
International explosion protection certificates, overfill prevention and leakage detection certificate WHG

Prednosti

Cost-effective probe for conductive liquids with detection of up to five point levels with one probe
No calibration required
Standard setting for the most common conductive liquids
No moving parts in the tank - long service life, reliable operation with no wear or blockages

Segment Fundamental

Enostavni produkti
Lahka izbira, vgradnja in uporaba

Tehnična odličnost

Preprostost

Kaj je FLEX?

Enostavni produkti
Lahka izbira, vgradnja in uporaba

Tehnična odličnost

Preprostost

Kaj je FLEX?

Standardni produkti
Zanesljivi, robustni, nezahtevni za vzdrževanje

Tehnična odličnost

Preprostost

Kaj je FLEX?

Vrhunski produkti
Visoko funkcionalni in praktični

Tehnična odličnost

Preprostost

Kaj je FLEX?

Specialni produkti
Zasnovani za posebej zahtevne aplikacije

Tehnična odličnost

Preprostost

Spremenljivo

Kaj je FLEX?

FLEX izbira	Tehnična odličnost	Preprostost
F L E X Segment Fundamental Zadostite svojim osnovnim merilnim potrebam	Tehnična odličnost	Preprostost
F L E X Segment Lean Obvladajte ključne procese na preprost način	Tehnična odličnost	Preprostost
F L E X Segment Extended Optimirajte procese z inovativnimi tehnologijami	Tehnična odličnost	Preprostost
F L E X Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije	Tehnična odličnost	Preprostost Spremenljivo

Spoznajte FLEX podrobneje

Loading alternative products

Predhodnik

One rode probe 11263
21373

FTW131

Zgodbe o uspehu

Simple and efficient level measurements in sewer systems

Simple and efficient level measurements in sewer systems with the product familiy Micropilot FMR10B, FMR20B and FMR30B
Preberi celotno zgodbo
Simple and efficient level measurements in open channels

Simple and efficient level measurements in open channels with the product familiy Micropilot FMR10B, FMR20B and FMR30B
Preberi celotno zgodbo
Optimized logistics concept for tank systems

We implemented a highly effective logistics concept at chemicals distributors Brenntag Schweizerhall AG's Basel site.
Preberi celotno zgodbo
Extend SIL proof test intervals with new Liquiphant FTL51

Discover how our customer CABB was able to extend SIL proof test intervals with the new Liquiphant FTL51
Preberi celotno zgodbo
Truck loading - safety solved through trusted partnership

Endress+Hauser provides global chemical and plastics distributor with “total turnkey solution”
Preberi celotno zgodbo

Cenimo vašo zasebnost

Uporabljamo piškotke, da bi lahko izboljšali vašo izkušnjo med brskanjem, zbirali statistične podatke za izboljšanje delovanja spletnega mesta in zagotavljali prilagojene oglase ali vsebine.

Z izbiro "Sprejmi vse" se strinjate z našo uporabo piškotkov.
Za podrobnosti si oglejte naš Pravilnik o piškotkih .

	EN	SL	Več
15/04/2024

Jezik:	slovenščina
Verzija:	15/04/2024
Velikost datoteke:	335.4 KB
Ime datoteke:	KA01712FSL_0124-00.pdf

	EN	SL	Več
19/08/2016
09/04/2013
09/07/2010
01/07/2003

Jezik:	angleščina
Verzija:	19/08/2016
Velikost datoteke:	386.9 KB
Ime datoteke:	TI00375FEN_1416.pdf

	EN	SL	Izbira drugega jezika
06/12/2024
25/03/2024
15/09/2023
28/10/2021
30/07/2021

	EN	SL	Izbira drugega jezika
28/02/2022
13/04/2016
31/12/2010
01/03/2003

Jezik:	nemščina
Verzija:	18/10/2018
Velikost datoteke:	1.2 MB
Ime datoteke:	ZE00257FDE_1418.pdf

Jezik:	italijanščina
Verzija:	03/03/2023
Velikost datoteke:	46.9 MB
Ime datoteke:	FA00001F00IT2522.pdf

Jezik:	španščina
Verzija:	01/06/2022
Velikost datoteke:	7.2 MB
Ime datoteke:	FA00001Fes Catalogo Nivel_24.22.pdf

Jezik:	kitajščina
Verzija:	25/08/2017
Velikost datoteke:	138.2 KB
Ime datoteke:	HE_00826_01.17_China-RoHS_Liquipoint_OTW32.pdf

	EN	SL	×nemščina
18/10/2018
02/08/2013
01/08/2008
01/02/2004

ConductivePoint level detectionLiquipoint FTW32

Rope probe for multipoint detection for up to 5 switch points

Lastnosti na dlani

Process temperature

Process pressure / max. overpressure limit

Min. conductivity of medium

Področje uporabe

Prednosti

Segment Fundamental

Predhodnik

Zgodbe o uspehu

Simple and efficient level measurements in sewer systems

Simple and efficient level measurements in open channels

Optimized logistics concept for tank systems

Extend SIL proof test intervals with new Liquiphant FTL51

Truck loading - safety solved through trusted partnership

Merilni princip

Characteristic / Application

Supply / Communication

Ambient temperature

Process temperature

Process pressure / max. overpressure limit

Min. conductivity of medium

Main wetted parts

Max. tensile strength

Process connection

Sensor length

Communication

Certificates / Approvals

Safety approvals

Components

Application limits

Back

KA Liquipoint T FTW32

Liquipoint T FTW31, FTW32 Technical Information

TI Weld-in adapter, process adapter and flanges

Liquipoint T FTW31, FTW32 Technical Information

Liquipoint T FTW 31, FTW 32

KA Liquipoint T FTW32

Liquipoint T FTW31, FTW32 Operating Information

XA Liquipoint T FTW31, FTW32

Liquipoint T FTW31, FTW32

Liquipoint T FTW31, FTW32

Liquipoint T FTW31, FTW32

Liquipoint T FTW31, FTW32

Leckagesonden mit Messumformer Liquipoint FTW31, FTW32

Level measurement

Misura di livello

Füllstandsmesstechnik

Catálogo Medición y Detección de nivel

Grenzstanddetektion in Flüssigkeiten und Schüttgütern

Point level detection in liquids and bulk solids

Catálogo soluciones esenciales

Product family: Liquipoint T

Back

Cover F24, PBT (FTW31/32), gasket

Cover F16 grey, PBTP, gasket

O-ring 71.0x3.55 EPDM, 5 pieces

Cable monitoring board

Weight FTW32, SS, 3 pieces

Sealing ring G1-1/2, 48x55 FA, 5 pcs.

Electronics FEW52

Electronics FEW54

Electronics FEW58

Protection cover F16 housing

Mounting nut G1-1/2, PC

ConductivePoint level switchNivotester FTW325

Min. density of medium

VibronicPoint level detectionNivotester FTL325N

RLN22 NAMUR isolating amplifier

Input

Output

Power Supply

ConductivePoint level switchNivotester FTW325

Min. density of medium

VibronicPoint level detectionNivotester FTL325N

RLN22 NAMUR isolating amplifier

Input

Output

Power Supply

Conductive
Point level detection
Liquipoint FTW32

Rope probe for multipoint detection for up to  5 switch points

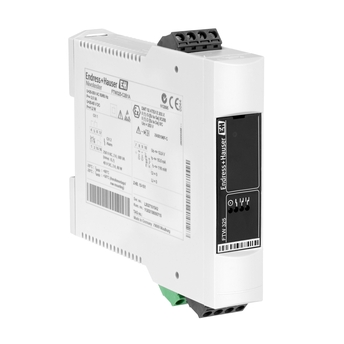

Conductive
