Lastnosti na dlani
-
Process temperature
-50°C ... 180°C
(-58°F ... 356°F) -
Process pressure / max. overpressure limit
Vacuum ... 25 bar
(Vacuum ... 362 psi)
Področje uporabe

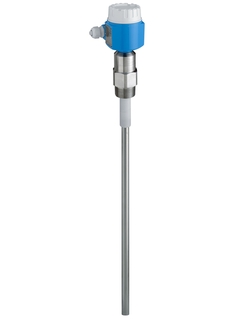

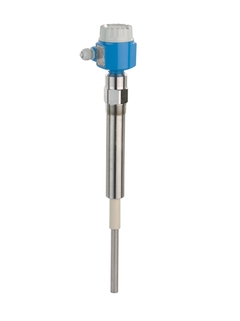

Solicap FTI55 is a fully/partly insulated and robust rod probe for point level detection of fine-grained to coarse-grained bulk solids. It offers maximum reliability due to its active build-up compensation and is suited for a wide range of applications thanks to numerous certificates and approvals. Due to its robust construction, it can also be used to provide accurate measurements in applications with very high lateral loads up to 300Nm.
For applications with very high lateral loads up to 300Nm. Fieldgate and Solicap represent a solution for material provisioning and logistical optimization (inventory control)
Process connections: Flanges and threads
Measurement range: 200 to 4,000mm (4 to 157")
Temperature: -50 to +180°C (-58 to +356°F)
Pressure: -1 to +25bar (-14.5 to +363psi)
International explosion protection certificates, SIL
Prednosti
Highest safety and reliability due to robust design for demanding process conditions
Cost savings thanks to easy and fast commissioning as calibration is performed at the press of a button
Universal application thanks to wide range of certificates and approvals
Two-stage overvoltage protection against static discharges from the silo

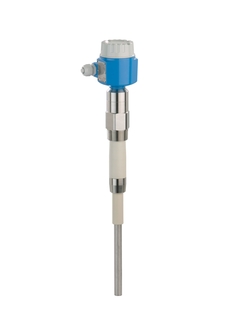

Active build-up compensation for bulk solids with caking tendency (under development)
Increased safety due to permanent automatic monitoring of electronics
Reduction in storage costs thanks to easy-to-shorten rod model (for partial insulation) and rope model (for partial and full insulation)
Videoposnetki
Segment Extended
-
Vrhunski produkti
- Visoko funkcionalni in praktični
Tehnična odličnost
Preprostost
-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Specialni produkti
- Zasnovani za posebej zahtevne aplikacije
Tehnična odličnost
Preprostost
Spremenljivo
| FLEX izbira | Tehnična odličnost | Preprostost |
|---|---|---|
Segment Fundamental Zadostite svojim osnovnim merilnim potrebam |
Tehnična odličnost
|
Preprostost
|
Segment Lean Obvladajte ključne procese na preprost način |
Tehnična odličnost
|
Preprostost
|
Segment Extended Optimirajte procese z inovativnimi tehnologijami |
Tehnična odličnost
|
Preprostost
|
Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije |
Tehnična odličnost
|
Preprostost
Spremenljivo |
Loading alternative products
Predhodnik
Zgodbe o uspehu
Dokumenti 50
-
-
Tehnične informacije (TI)
Solicap M FTI55, FTI56 Technical Information
Point level switch for bulk solids
EN SL 26/10/201505/03/201014/11/200826/08/2006Jezik:
angleščina
Verzija:
26/10/2015
Velikost datoteke:
1.4 MB
Ime datoteke:
TI00418FEN_1315.pdf
-
-
-
Tehnične informacije (TI)
TI Solicap M FTI55
Capacitance
EN SL 05/09/202425/09/2023Jezik:
angleščina
Verzija:
05/09/2024
Velikost datoteke:
1.1 MB
Ime datoteke:
TI01556FEN_0224-00.pdf
-
-
-
Navodila za uporabo (BA)
BA Solicap M FTI55
Capacitance
EN SL 05/09/202425/09/2023Jezik:
angleščina
Verzija:
05/09/2024
Velikost datoteke:
2.5 MB
Ime datoteke:
BA02033FEN_0224-00.pdf
-
-
-
Navodila za uporabo (BA)
Solicap M FTI55, FTI56 Operating Manual
Capacitive point level switch
EN SL 26/10/201505/03/201014/11/200826/09/2006Jezik:
angleščina
Verzija:
26/10/2015
Velikost datoteke:
1.9 MB
Ime datoteke:
BA00300FEN_13.15.pdf
-
-
-
Kratka navodila (KA)
Solicap M FTI55
Kapacitivno mejno nivojsko stikalo
EN SL 01/09/2021Jezik:
slovenščina
Verzija:
01/09/2021
Velikost datoteke:
700.8 KB
Ime datoteke:
KA01485FSL_0120.pdf
-
-
-
Navodila za vgradnjo (EA)
Cover for housing T13 electronic compartment with sight glas Installation instruction
Liquicap M, Solicap M, Liquphant M/S/FailSafe, Soliphant M
EN SL 09/08/2012Jezik:
angleščina
Verzija:
09/08/2012
Velikost datoteke:
158.7 KB
Ime datoteke:
EA01049FA2_01.12.pdf
-
-
-
Navodila za vgradnjo (EA)
Cover for housing T13 electronic compartment Installation instruction
Liquiphant M/S, Soliphant M, Liquicap M, Solicap M/S
EN SL 11/08/201409/08/2012Jezik:
angleščina
Verzija:
11/08/2014
Velikost datoteke:
164.3 KB
Ime datoteke:
EA01048FA2_0214.pdf
-
-
-
Navodila za vgradnjo (EA)
Cover for housing F27 Installation instruction
Liquihant M/S, Soliphant M, Liquicap M, Solicap M/S
EN SL 11/08/201416/01/201409/08/2012Jezik:
angleščina
Verzija:
11/08/2014
Velikost datoteke:
136.4 KB
Ime datoteke:
EA01047FA2_0314.pdf
-
-
-
Navodila za vgradnjo (EA)
Cover for housing F13 Installation instruction
Liquiphant M/S, SoliphantM, Liquicap M, Solicap M/S
EN SL 11/08/201409/08/2012Jezik:
angleščina
Verzija:
11/08/2014
Velikost datoteke:
134.4 KB
Ime datoteke:
EA01046FA2_0214.pdf
-
-
-
Navodila za vgradnjo (EA)
Cover for housing T13 terminal compartment Installation instruction
Liquiphant M/S, Soliphant M, Liquicap M, Solicap M/S
EN SL 24/02/202215/08/201409/08/2012Jezik:
angleščina
Verzija:
24/02/2022
Velikost datoteke:
119 KB
Ime datoteke:
EA01050FA2_0322.pdf
-
Iskanje nadomestnih delov po številki iz risbe
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Cover F13 Ex Alu, gasket
-
Cover
Številka risbeKataloška koda2052002698 -
-
Cover F17 Alu, gasket
-
Cover
Številka risbeKataloška koda2052002699 -
-
Cover T13 Alu, gasket EPDM
-
Cover
Številka risbeKataloška koda2052006903 -
-
Cover F16 grey, PBTP, gasket
-
Cover
Številka risbeKataloška koda2052025606 -
-
Cover F15 316L, gasket
-
Cover
Številka risbeKataloška koda2052027000 -
-
Cover T13 "Terminal" Alu, gasket EPDM
-
Cover
Številka risbeKataloška koda2552007103 -
-
O-ring 71.0x3.55 EPDM, 5 pieces
-
Sealing
Številka risbeKataloška koda2152004137 -
-
Sealing set EPDM,cover F13/17/18/27,10pc
-
Sealing
Številka risbeKataloška koda2152004277 -
-
Sealing set EPDM 73.0x3.0, 10 pieces
-
Sealing
Številka risbeKataloška koda2152008495 -
-
Gasket 67.5x2.9x1.5 VMQ/PTFE, 5 pieces
-
Sealing
Številka risbeKataloška koda2152028179 -
-

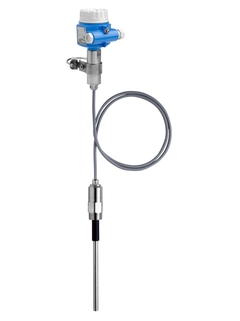

Cable F15/F16/F17 separate, FTIxx
-
further parts
Kataloška koda71084478 -
-
Electronics FEI54, relay DPDT, AC/DC
-
Electronic
Številka risbeKataloška koda3071025814 -
-
Electronics FEI55, 8/16mA, 11-36VDC
-
Electronic
Številka risbeKataloška koda3071025815 -
-
Electronics FEI57S, 2-wire PFM
-
Electronic
Številka risbeKataloška koda3071025816 -
-
Electronics FEI52, PNP, 10-55VDC
-
Electronic
Številka risbeKataloška koda3071025819 -
-
Electronics FEI53, 3-12V, signal
-
Electronic
Številka risbeKataloška koda3071025820 -
-
Electronics FEI51, 19-253VAC
-
Electronic
Številka risbeKataloška koda3071042887 -
-
Electronics FEI58 Namur
-
Electronic
Številka risbeKataloška koda3071100895 -
-
Mounting set (2"/pipe 38_V4A
-
further parts
Kataloška koda919806-1000 -
-
Sealing ring G1, 33x39 FA, 5 pcs.
-
further parts
Številka risbeKataloška koda5752014048 -
-
Sealing ring G1-1/2, 48x55 FA, 5 pcs.
-
further parts
Številka risbeKataloška koda5752014047 -
-
Weather protection cover F13/F17/F18/F27
Kataloška koda71040497 -
Protection cover F16 housing
Kataloška koda71127760
