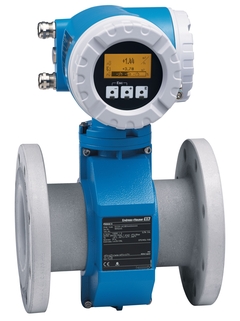

Picture of flowmeter Proline Promag 55S for applications with high solids content and high abrasion

Proline Promag 55S
electromagnetic flowmeter

The flowmeter with outstanding abrasion resistance and integrated solids content diagnostics

55S

Primerjava

Proline Promag 55S for applications with high solids content and high abrasion

Lastnosti na dlani

Max. measurement error

Volume flow: ±0.5 % o.r.± 1 mm/s (0.04 in/s)
Option: ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
Measuring range

0.06 dm3/min to 600 m3/h (0.015 gal/min to 2650 gal/min)
Medium temperature range

0 to +60 °C (+32 to +140 °F), 0 to +80 °C (+32 to +176 °F), –20 to +50 °C (–4 to +122 °F), –20 to +180 °C (–4 to +356 °F), –20 to +150 °C (–4 to +266 °F)
Max. process pressure

PN 40, Cl. 300, JIS 20 K
Wetted materials

Liner: Polyurethane, Hard rubber, PFA, PTFE, Natural rubber
Electrodes: 1.4435/304L, Alloy C-22, Tantalum, Platinum, Duplex 1.4465, Tungsten carbide, Titanum

Vse specifikacije

Področje uporabe

Promag S is the specialist for inhomogeneous, abrasive and corrosive fluids. The robust sensor design, featuring industry-optimized liners, enables its use in most challenging surroundings and metering jobs such as sewage treatment, pulp and paper production or in the primaries and metals industry. Due to its high-performance transmitter, Promag 55S not only measures flow reliably, but also calculates solids content at low maintenance requirements.

The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
Ideal for the most demanding applications with high solids content and high abrasion.

Device properties

Intensified coil system
Large range of liners
Solids content up to 80 % by weight
4-line backlit display with touch control
Two switch outputs
HART, PROFIBUS PA/DP, FOUNDATION Fieldbus

Prednosti

Superb signal stability due to unique signal processing
Maximum safety – industry-optimized measuring electrodes and linings
Energy-saving flow measurement – no pressure loss due to cross-section constriction
Maintenance-free – no moving parts
Highest performance – with integrated solids measurement for demanding fluids
Highest safety – integrated electrode cleaning
Automatic recovery of data for servicing
