Ta izdelek ni več na voljo.

V razdelku predhodnik/naslednik preverite novo generacijo izdelka ali se obrnite na lokalnega zastopnika podjetja Endress + Hauser.

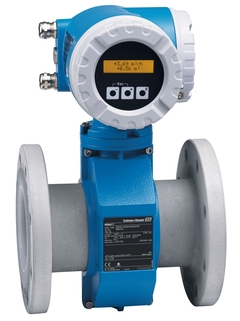

Electromagnetic flowmeter - Proline Promag 51P

Naslednik

F

L

E

X
Proline Promag P 300 / 5P3B

High-temperature flowmeter for process applications with a compact, easily accessible transmitter
Več informacij

Nalaganje cene

Cene trenutno niso na voljo

Cena po prijavi

Price on request
F

L

E

X
Proline Promag P 500 / 5P5B

High-temperature flowmeter for process applications as remote version with up to 4 I/Os
Več informacij

Nalaganje cene

Cene trenutno niso na voljo

Cena po prijavi

Price on request

Enostavni produkti
Lahka izbira, vgradnja in uporaba

Tehnična odličnost

Preprostost

Kaj je FLEX?

Standardni produkti
Zanesljivi, robustni, nezahtevni za vzdrževanje

Tehnična odličnost

Preprostost

Kaj je FLEX?

Vrhunski produkti
Visoko funkcionalni in praktični

Tehnična odličnost

Preprostost

Kaj je FLEX?

Specialni produkti
Zasnovani za posebej zahtevne aplikacije

Tehnična odličnost

Preprostost

Spremenljivo

Kaj je FLEX?

FLEX izbira	Tehnična odličnost	Preprostost
F L E X Segment Fundamental Zadostite svojim osnovnim merilnim potrebam	Tehnična odličnost	Preprostost
F L E X Segment Lean Obvladajte ključne procese na preprost način	Tehnična odličnost	Preprostost
F L E X Segment Extended Optimirajte procese z inovativnimi tehnologijami	Tehnična odličnost	Preprostost
F L E X Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije	Tehnična odličnost	Preprostost Spremenljivo

Spoznajte FLEX podrobneje

Merilni princip

Electromagnetic
Product headline

The flowmeter for highest medium temperatures with a transmitter for custody transfer. Dedicated for chemical and process applications with corrosive liquids and high medium temperatures.
Sensor features

Versatile applications – wide variety of wetted materials. Energy‐saving flow measurement – no pressure loss due to cross‐section constriction. Maintenance‐free – no moving parts. Nominal diameter: max. DN 600 (24"). All common Ex approvals.
Transmitter features

Quality – designed for custody transfer; featuring worldwide recognized metrological approvals. Safe operation – display provides easy readable process information. Fully industry compliant – IEC/EN/NAMUR. Transmitter certified to MI‐001. Device in compact or remote version.
Nominal diameter range

DN 15...600
1/2"...24"
Max. measurement error

±0.5%
±0.2% (optional)
Measuring range

0...9'600 m3/h
Max. process pressure

PN10...40
Medium temperature range

-40...+150°C
(-40...+302°F)
Ambient temperature range

-20...+60°C
-40...+60°C (optional)
Degree of protection

IP 67 (NEMA 4x)
IP 68 (Nema 6P)
Display/Operation

Two line display with backlit
Push button
Outputs

4...20 mA
Pulse/Frequency
Status
Inputs

Status
Digital communication

HART
Hazardous area approvals

ATEX
Product safety

CE, C-tick, EAC marking
Metrological approvals and certificates

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Custody transfer approvals: MI-001, PTB

Cenimo vašo zasebnost

Uporabljamo piškotke, da bi lahko izboljšali vašo izkušnjo med brskanjem, zbirali statistične podatke za izboljšanje delovanja spletnega mesta in zagotavljali prilagojene oglase ali vsebine.

Z izbiro "Sprejmi vse" se strinjate z našo uporabo piškotkov.
Za podrobnosti si oglejte naš Pravilnik o piškotkih .

	EN	SL
01/07/2005
15/10/2003

Jezik:	angleščina
Verzija:	01/07/2005
Velikost datoteke:	489.7 KB
Ime datoteke:	TI058DEN.pdf

	EN	SL
30/10/2010
01/07/2009

Jezik:	angleščina
Verzija:	30/10/2010
Velikost datoteke:	2.4 MB
Ime datoteke:	BA00137DEN_0310.pdf

	EN	SL
01/03/2005
15/10/2003
01/04/2002

	EN	SL
01/07/2009
01/09/2007

	EN	SL
15/11/2018
18/11/2011

	EN	SL
15/10/2024
01/10/2018
28/06/2012

	EN	SL
15/11/2018
05/08/2014

Promag 51P

Naslednik

Proline Promag P 300 / 5P3B

Proline Promag P 500 / 5P5B

Merilni princip

Product headline

Sensor features

Transmitter features

Nominal diameter range

Max. measurement error

Measuring range

Max. process pressure

Medium temperature range

Ambient temperature range

Degree of protection

Display/Operation

Outputs

Inputs

Digital communication

Hazardous area approvals

Product safety

Metrological approvals and certificates

Back

Proline Promag 51P, 51W Technical Information

Proline Promag 51 HART Operating Instructions

Proline Promag 51 HART Operating Instructions

Proline Promag 51 HART Description of Device Functions

Proline Promag 51 Brief Operating Instructions

Replacing Power supply and display Installation Instructions

EA Replacing cover and O-ring

Replacing amplifier board Installation Instructions

Repair kit cover remote version Installation Instructions

I/O-board, subprint, screening sheed Installation Instructions

Back

Kit P.s.b. 50/51/53 85-260VAC

Kit P.s.b. 50/51/53 85-260VAC Ex

Kit P.s.b. 50/51/53 20-55VAC 16-62VDC

Kit P.s.b. 50/51/53 20-55VAC16-62VDC Ex

Kit 10 fuses 250 VAC T800 MA

Kit 10 fuses 250 VAC T 2A00

Kit com50/51/40/80/90 I+F/stat.in+outEx

Kit meas. amplifier PMAG 51 WEA

Kit meas. amplifier PMAG 51 EES

Kit meas. amplifier PMAG 51 SEA

Kit display mod 50/51/80/65 >=V1.06.00

Kit disp.50/51/80/90/65 Wall >=V1.06.00

Kit Bus/connec.b.5X/40/8X/65 field hous.

Kit Bus PCB/PCB carr.5X/8X/9X/65 wall

Kit connec. board In/Output Wall encl

Kit connec. board PMAG5X wall enclo.

Kit connection board D/E/L/P/S/W FS

Kit Termin.Block field hous. 5X/8X/40/65

Kit Termin.Block Wall encl. 5X/8X/9X/65

Kit S-Dat Promag 51 programmed

Kit Cover 5X/40/8X/65 with window

Kit Cover 5X/40/8X/93/65 with window Exd

Kit Cover 5X/40/8X/93/65 Conn.termi.Exe

Kit Cover 5X/40/8X/93/65 Conn.termi.Exd

Kit Cover Connection terminal

Kit Cover Connection terminal

Repair kit cover, remote version

Kit 10 cable glands M20x1,5

Kit 10 cable glands M20x1.5 Ex

Kit 10 cable glands M20x1.5 Ex

Kit 10 extension M20x1.5/PG13,5

Kit Circuit board cpl field/SS-housing

Kit Ground terminal / Cover clamp

Kit Seal cover to Wall enclosure

Kit 10 Seal cover to field housing

Kit Bushing to field/SS-housing

Kit parts housing FS Stnd/HT

Kit parts housing compact Stnd/HT

Kit housing gasket FS Stnd/HT

Kit housing gasket compact Stnd/HT

Kit Screw sealing PMAG 51

Kit 50 lead seals

Promag, cable remote version

Transmitter Promag, mounting set

Promag L/W/P/S,E, grounding cable kit

Promag, grounding disc/protection disc
