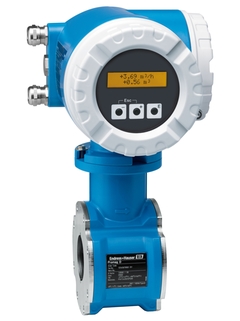

Electromagnetic flowmeter - Proline Promag 50D

Naslednik

F

L

E

X

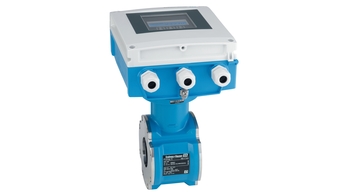

Proline Promag D 400 / 5D4C

Wafer flowmeter for the water and wastewater industry. For basic water applications; optimized for limited space and plastic pipe installations.
Več informacij

Nalaganje cene

Cene trenutno niso na voljo

Cena po prijavi

Price on request

from CHF ??.-

Enostavni produkti
Lahka izbira, vgradnja in uporaba

Tehnična odličnost

Preprostost

Kaj je FLEX?

Standardni produkti
Zanesljivi, robustni, nezahtevni za vzdrževanje

Tehnična odličnost

Preprostost

Kaj je FLEX?

Vrhunski produkti
Visoko funkcionalni in praktični

Tehnična odličnost

Preprostost

Kaj je FLEX?

Specialni produkti
Zasnovani za posebej zahtevne aplikacije

Tehnična odličnost

Preprostost

Spremenljivo

Kaj je FLEX?

FLEX izbira	Tehnična odličnost	Preprostost
F L E X Segment Fundamental Zadostite svojim osnovnim merilnim potrebam	Tehnična odličnost	Preprostost
F L E X Segment Lean Obvladajte ključne procese na preprost način	Tehnična odličnost	Preprostost
F L E X Segment Extended Optimirajte procese z inovativnimi tehnologijami	Tehnična odličnost	Preprostost
F L E X Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije	Tehnična odličnost	Preprostost Spremenljivo

Spoznajte FLEX podrobneje

Merilni princip

Electromagnetic
Product headline

The compact wafer version combined with a modular electronic concept. For basic water applications; optimized for limited space and plastic pipe installations.
Sensor features

Easy, fast centering of the sensor – innovative housing construction. Energy‐saving flow measurement – no pressure loss due to cross‐section constriction. Maintenance‐free – no moving parts. Short installation length and low weight. Integrated ground disks made of stainless steel.
Transmitter features

Fast commissioning – application‐specific Quick Setups. Safe operation – display provides easy readable process information. Fully industry compliant – IEC/EN/NAMUR. 2‐line backlit display with push buttons. Device in compact or remote version.
Nominal diameter range

DN 25…100
1"…4"
Max. measurement error

±0.5%
Measuring range

0...600 m3/h
Max. process pressure

PN16
Cl 150
JIS 10K
Medium temperature range

0...+60°C
(+32...+140°F)
Degree of protection

IP 67 (NEMA 4x)
Display/Operation

Two line display with backlit
Push button
Outputs

4...20 mA
Pulse/Frequency
Status
Inputs

Status
Digital communication

HART
Profibus DP/PA
Hazardous area approvals

FM
CSA
Product safety

CE, C-tick, EAC marking
